Roof spoiler performance Mansory for Mercedes-AMG S63E
Mansory Roof Spoiler Performance for Mercedes-AMG S63E

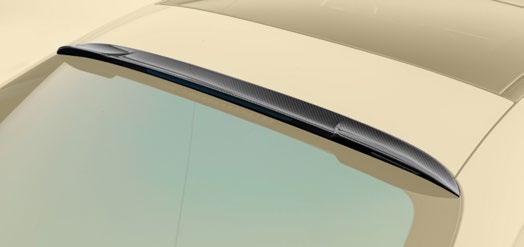

The roof spoiler sits at the rear edge of the panoramic roof, just above the rear glass — the highest point on the upper body where any aero work can still meaningfully shape the wake before it leaves the upper surface. The performance variant is the taller of the two roof-spoiler options in the Mansory programme; it adds approximately 14–18 mm of trailing-edge height versus the standard roof-spoiler variant. On a long-wheelbase W223 saloon the upper-body silhouette is the longest of any current AMG product, and the wake forming off the roof's trailing edge has the largest moment arm against the rear-axle vertical load on the car. With the AMG biturbo V8 PHEV drivetrain pushing 802 hp / 1430 Nm into the saloon's 2,510 kg kerb mass through 4MATIC+ AWD and a 9-speed AMG Speedshift MCT, the rear-axle vertical load stability at sustained autobahn pace is what determines whether the AIRMATIC's rear damping reads as composed under throttle. The performance roof spoiler tightens that wake. It is part of the parent Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E.
Construction & Materials
Roof spoilers live in a UV-saturated location and bond to a structurally sensitive area — the rear edge of the panoramic glass roof, where the OEM bonding paste runs along an aluminium reinforcement frame. The Mansory layup is matched to that bond environment.
- 3K 2×2 twill A-side cosmetic skin, biased so weave kinetics suggest rearward flow
- Pre-preg vacuum-bag autoclave cure at 130 °C, multi-axial fibre orientation
- Wall thickness 2.0–2.6 mm in the show face, 3.5–4.5 mm at the panoramic-roof bond pad
- Net dry weight 0.7–0.95 kg
- 3M VHB 5952 bond face matched to the OEM panoramic-roof glass-edge surface treatment
- Inner edge gasket (closed-cell EPDM) to prevent water tracking under the spoiler at the bond rear-line
- UV-stable 2K clear lacquer with extra UV-package additive (gloss / satin / matte)
- Substrate prep: solvent wipe on the panoramic-roof glass-edge bond zone, 3M Cleaner-Primer 94, low-tack masking
Design & Visual Function
The performance roof spoiler's geometry is dictated by aero rather than ornament. Its trailing edge is set at the height that produces the cleanest separation off the upper roof for the W223 saloon's specific rear-glass rake, which is steeper than a comfort-line saloon's because the AMG-spec body's rear quarter is taller. The result is a tighter, more defined wake — the boundary layer separates in a known line rather than spilling chaotically off the OEM rear-glass-to-roof transition, and the wake's downward push contributes a measurable amount to the rear-axle's vertical load stability at sustained high speed.
Visually the performance spoiler reads as a pronounced motorsport accent. From three-quarter angles the upper silhouette of the saloon is distinctly taller than the OEM line; from directly behind the spoiler frames the rear glass with a defined carbon top edge that pulls the eye to the centre of the body. For AMG Night Package cars the satin lacquer disappears the spoiler into the AMG-spec blacked-out roof trim. AMG Carbon Package cars whose original spec includes exposed-carbon roof or rear-quarter accents pair naturally with this gloss-lacquered version.
The lacquer carries an extra UV-package additive specifically because the roof zone is the most UV-exposed surface on the car; flat, sun-facing carbon will fade visibly within a few seasons if the lacquer is not engineered for the exposure profile.
Compatibility & Fitment
Engineered for Mercedes-AMG S 63 E PERFORMANCE (W223), 2023+, saloon. The bond datum is the trailing edge of the OEM panoramic glass roof — the spoiler bonds onto the panoramic-roof's aluminium reinforcement frame immediately above the rear-glass shut-line. The spoiler does not interact with the OEM rear-glass de-mister, the AMG roof rails (where fitted), the OEM panoramic-roof shade or the overhead control buttons. Cars without the panoramic glass roof — those with the standard OEM metal roof — are also supported; the bond datum simply moves to the painted metal-roof trailing edge.
Installation & Reversibility
Plan 75–110 minutes. Required tools: isopropyl alcohol, 3M Cleaner-Primer 94, low-tack masking tape (high-quality automotive grade for around the panoramic glass), soft rubber roller. Workflow: clean and prime the rear panoramic-roof bond pad, mask the surrounding paint and glass with low-tack tape, lay down the EPDM rear-line gasket, peel the VHB liner, set the spoiler down with a slight rocking motion to break air-pocket formation, press home with a rubber roller for 30 seconds across the entire bond face, observe a 24-hour cure period before driving in heavy rain or operating any high-pressure wash. Reversibility is good but the panoramic-roof bond zone is the most demanding to release without paint or glass-edge witness — VHB removal should be done by a panel specialist with localised heat (200–250 °C heat gun) and dental floss, and the surrounding paint should be polished after removal to restore gloss.
Pairing within the Mansory Mercedes-AMG S63E programme
Most often combined with the Rear decklid spoiler performance for a coherent upper-body trailing-edge geometry, with the Rear hatch panel for visual continuity at the rear-glass-to-decklid transition, and with the Diffuser below to lock the rear-aero programme top-and-bottom.
Maintenance & Durability
The roof spoiler is the most UV-exposed carbon part on the car. Apply a UV ceramic top once a year minimum; outdoor-stored cars benefit from twice-a-year application. Hand-wash with pH-neutral shampoo and a plush noodle mitt; avoid the temptation to climb on the boot lid to reach the spoiler — bond-line stress from a person's weight at the trailing edge can walk the bond over years. Avoid abrasive sponges. Do not pressure-wash the bond rear-line at less than 30 cm distance even after full cure; persistent water impingement at the bond will eventually find the EPDM gasket's rear edge and track water under the spoiler. Stone-strike on the leading edge is rare given the position but should be sealed with clear UV epoxy within seven days if it occurs. Cosmetic-finish lifespan: 9–12 years given the part's UV-exposure profile and the extra UV-package lacquer.
Lead Time & Warranty
Production turnaround: 3–5 weeks. Custom finishes (matte, satin, forged-look) extend by roughly one week. The UV-package lacquer adds a small amount of additional cure time relative to a standard exterior carbon part. Warranty: 12 months against manufacturing defects — delamination, voids, fitment, bond integrity, clear blistering, UV fade — running from delivery date. Outside warranty: physical damage from objects on the boot lid, bird-strike, parking-cover-rub, and UV degradation outside the rated lifespan. Each spoiler ships in a foam cradle inside a stiffened outer carton; the QC photograph documents trailing-edge alignment and lacquer continuity under raking light.
FAQ
Q: How does the performance roof spoiler differ from the standard roof spoiler?
A: Roughly 14–18 mm more trailing-edge height, with a more defined separation line. The performance variant produces a measurable rear-axle lift reduction; the standard variant is more visually conservative.
Q: Does the spoiler bond directly to the panoramic glass?
A: No — it bonds to the trailing-edge aluminium reinforcement frame immediately above the rear-glass shut-line. The bond surface is paint, not glass.
Q: Is the spoiler compatible with cars that have the OEM solid metal roof rather than the panoramic glass roof?
A: Yes. The bond datum moves to the painted metal-roof trailing edge; geometry and fitment are otherwise identical.
Q: Will the rear-glass de-mister continue to work?
A: Yes. The de-mister is in the rear glass, below the spoiler bond plane, and is not touched by the spoiler installation.
Q: Does the spoiler obscure the high-mount brake light?
A: No. The high-mount brake light is in the rear glass, below and forward of the spoiler trailing edge.
Q: Is the part removable without paint damage?
A: Removal should be performed by a panel specialist with localised heat. The OEM paint can be restored to OEM gloss with a polish after removal, but a witness mark on the bond zone is possible if removal is rushed.
Q: Does the part affect the panoramic-roof shade or sunroof tilt?
A: No. The roof spoiler bonds at the trailing edge of the panoramic-roof aluminium frame and does not interfere with the OEM internal shade, the tilt mechanism, or the cabin overhead control buttons.
Q: How is the bond rear-line waterproofed?
A: A closed-cell EPDM gasket is laid down before the VHB seam is set; the gasket compresses under the spoiler weight and seals against water tracking under the bond.
Pair the performance roof spoiler with the performance decklid spoiler and the diffuser for a coordinated upper-and-lower rear-aero programme. To configure your build, message WhatsApp +44 7488 818 747 or write to [email protected].
