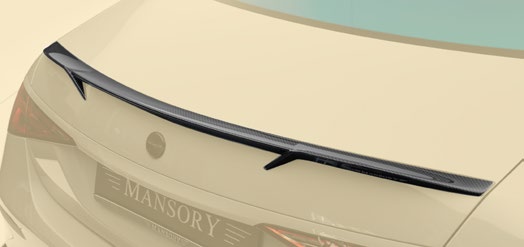

Rear deck lid spoiler performance Mansory for Mercedes-AMG S63E

Mansory Rear Decklid Spoiler Performance for Mercedes-AMG S63E

The performance variant of the Mansory decklid spoiler is the taller of the two upper-rear options for the S 63 E PERFORMANCE saloon, sitting on the trailing edge of the boot lid where the air leaves the upper body envelope. The aero brief is straightforward in description but demanding to deliver: shape the trailing edge of the upper body so the boundary layer separates with a defined, slightly downward exit angle, which loads the rear axle a measurable amount and reduces rear-axle lift at autobahn pace. On a 2,510 kg long-wheelbase W223 saloon driving 802 hp / 1430 Nm to all four corners through a 9-speed AMG Speedshift MCT and 4MATIC+ AWD, the rear-axle lift coefficient at sustained 200+ km/h is what determines whether the AIRMATIC dampers feel calm or busy under throttle, and whether the 4MATIC+ system can deliver torque to the rear without the rear contact patch unloading. The performance spoiler is taller than the standard sport variant; it gives up a little visual restraint for a noticeable improvement in this lift coefficient. It is part of the parent Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E.

Construction & Materials

A taller spoiler trailing edge cantilever sees more aero load than a shorter one — the part has to be stiff enough to resist flex at high speed, light enough not to over-load the boot-lid hinge, and durable enough to take the boot opening cycle thousands of times.

• 3K 2×2 twill A-side cosmetic skin (forged-look option, 2K plain weave option)
• Co-cured inner stiffener web in unidirectional carbon, running from leading to trailing edge
• Pre-preg autoclave cure at 130 °C, multi-axial fibre orientation
• Wall thickness 2.4–3.0 mm in the show face, 4.5–5.5 mm at the boot-lid bond pad
• Net dry weight 0.9–1.2 kg
• 3M VHB 5952 along the bond face, OEM boot-lid paint as substrate
• Optional stainless threaded inserts at the OEM emblem-cap position for additional mechanical retention
• UV-stable 2K clear lacquer (gloss / satin / matte) over hydrophobic primer

Design & Visual Function

The spoiler's trailing edge sits roughly 18–22 mm higher than the standard sport variant, which is the geometric difference that produces the lift-coefficient improvement. The leading edge profile blends seamlessly with the OEM AMG decklid surface — there is no visible step from boot lid to spoiler, only a smooth transition to the trailing edge. From three-quarter angles the spoiler's silhouette is distinctly taller than the OEM decklid line; from directly behind it reads as a defined motorsport accent rather than a coachbuilt detail.

Functionally the spoiler does two things: it gives the upper boundary layer a separation point so the wake forms with a defined geometry rather than spilling chaotically off a flat trailing edge, and it pushes that wake slightly downward, which lowers the rear-axle lift coefficient by a measurable margin at sustained high speed. On a saloon as heavy as the S 63 E PERFORMANCE the practical benefit is felt as a calmer rear axle under throttle and a more consistent steering feel when the AIRMATIC's rear-axle damping is in its sport-+ register.

Owners specifying the AMG Night Package usually choose satin lacquer; the spoiler then reads as a depth gradient against the AMG-spec blacked-out trim. AMG Carbon Package cars typically choose gloss lacquer to coordinate with the AMG-supplied carbon roof and rear-quarter accents.

Compatibility & Fitment

Engineered for Mercedes-AMG S 63 E PERFORMANCE (W223), 2023+, saloon. The bond face follows the OEM AMG boot-lid contour and the leading-edge transition is matched to the AMG decklid stamping. The spoiler does not interact with the OEM AMG rear-light cluster, the high-mount brake light (which lives in the rear glass), the rear emblem array, or the rear washer-jet (saloon body has no rear wiper). The OEM AMG boot-opening hinge sweep is preserved — there is generous clearance between the spoiler trailing edge and the rear glass when the boot is fully open. Owners with aftermarket boot-lid struts (gas struts replaced for stiffer aftermarket items) should verify the closing rate; the additional 0.9–1.2 kg on the boot lid is within the OEM strut envelope but at the outer edge of it.

Installation & Reversibility

Allow 60–90 minutes. Required tools: isopropyl alcohol, 3M Cleaner-Primer 94, low-tack masking tape, soft rubber roller, dry-fit alignment tape. Workflow: clean and prime the OEM boot-lid bond pad area, mark dry-fit alignment with low-tack tape, peel the VHB liner, set the spoiler down with a slight rocking motion to break the air pocket between the bond face and the boot-lid paint, press home with a rubber roller for 30 seconds, allow 24 hours cure before exposure to high-pressure water or boot-opening cycles. Reversibility is good but not perfect: the VHB releases cleanly with localised heat (200–250 °C heat gun) and dental floss, and the OEM paint will be intact provided adhesion-promoter rather than wax was used at install — but a fresh wax-and-polish on the OEM paint is recommended after VHB removal to restore the surface gloss.

Pairing within the Mansory Mercedes-AMG S63E programme

Most often combined with the Diffuser below for a coordinated rear-aero programme top and bottom, with the Roof spoiler performance for a coherent upper-body trailing-edge geometry, and with the Rear hatch panel for upper-rear visual coordination.

Maintenance & Durability

The spoiler sits in a cleaner zone than the diffuser — less salt and brake dust — but the trailing edge is a bird-strike and parking-cover-rub target. Hand-wash with pH-neutral shampoo, two-bucket method, and a plush noodle mitt. Avoid alkaline pre-wash dwell longer than 60 seconds. Wax routine: a soft carnauba twice a year for natural depth, or a ceramic spray sealant every wash. The trailing-edge top surface accumulates UV exposure on a long parking session — apply a UV ceramic top once a year for outdoor-stored cars. The bond face's VHB integrity should be inspected at every other service for any walk; the additional 0.9–1.2 kg on the trailing edge is within the bond's static envelope but at higher boot-opening cycles, the bond is the point that walks first if it ever fails. Expected cosmetic-finish lifespan 8–11 years.

Lead Time & Warranty

Production turnaround: 3–5 weeks. Custom finishes (matte, satin, forged-look) extend by roughly one week. Coverage: 12-month warranty against manufacturing defects — delamination, voids, fitment, bond integrity, clear blistering — running from delivery. Outside warranty: bird-strike and parking-cover-rub damage, chip propagation, and bond walk attributable to incorrect substrate prep at install. Each spoiler ships in a dedicated foam cradle with a stiffened outer carton; the QC photograph documents trailing-edge alignment and weave continuity under raking light.

FAQ

Q: How much taller is the performance spoiler than the sport variant?
A: Roughly 18–22 mm at the trailing edge — visually distinct but still proportional to a luxury saloon's silhouette.

Q: Does it change the rear glass / boot-lid hinge sweep?
A: No. The spoiler trailing edge clears the rear glass when the boot is fully open. OEM hinge geometry is preserved.

Q: Will the boot-lid struts continue to hold the lid open with the additional mass?
A: Yes within OEM specification. Aftermarket stiffer struts may need verification of the closing rate; the extra 0.9–1.2 kg sits at the outer edge of the OEM strut envelope.

Q: Does the spoiler obscure the OEM high-mount brake light?
A: No. The high-mount brake light lives in the rear glass and is not affected by the boot-lid spoiler.

Q: Will the rear-camera image be affected?
A: No. The reverse camera is mounted in the rear bumper, well below the spoiler plane, and the spoiler does not enter the camera projection cone.

Q: How is the lift-coefficient improvement quantified?
A: Mansory's wind-tunnel testing on the S 63 E PERFORMANCE platform shows a measurable rear-axle lift reduction at 200 km/h relative to OEM. Single-number downforce gains are not the headline; what matters is the rear-axle vertical-load stability at sustained high speed.

Q: Does the spoiler require any modification to the OEM AMG decklid emblem?
A: No. The leading-edge transition stops short of the OEM emblem position and the emblem can be retained, repositioned, or replaced with a Mansory carbon emblem at the owner's preference.

Q: Will the spoiler alter the rear-glass de-mister behaviour?
A: No. The rear-glass de-mister is unaffected because the spoiler sits below the rear-glass plane and does not enter the de-mister's heated zone.

Pair the performance spoiler with the diffuser and the performance roof spoiler for a coordinated rear-aero programme. To configure your build, message WhatsApp +44 7488 818 747 or write to [email protected].
