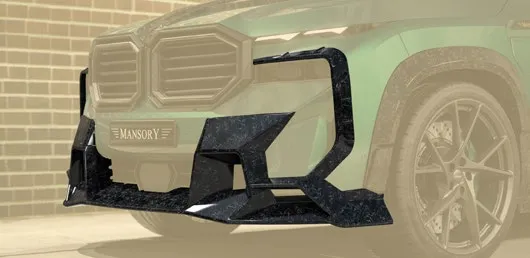

Front lip with side flaps Mansory for BMW XM

Front lip with side flaps Mansory for BMW XM

The Mansory front lip with side flaps is the extended-package front aero component of the Mansory Carbon Fiber Body kit set for BMW XM, combining the centreline splitter blade with a pair of integrated canard fins that manage lateral airflow at the outer corners of the G09 front fascia. Where the standalone front lip addresses only the centreline pressure deficit, the canard geometry activates an additional aerodynamic mechanism: each flap generates a concentrated streamwise vortex at its trailing edge that rolls outboard tyre-spray and front-wheel turbulence away from the underbody, reducing the rotational energy that would otherwise feed into the front wheel-arch cavity and generate aerodynamic lift at the strut top-mounts. On the BMW XM — a 2,750 kg M xDrive PHEV SUV driven by the S68 4.4-litre twin-turbo V8 and a 25.7 kWh battery pack — this lateral vortex action at the front three-quarter contributes to directional stability during high-speed lane changes and reduces the perceived front-end wandering that tall SUV geometry can exhibit in crosswinds. The result is a more assured steering feel at motorway pace without any modification to the BMW M adaptive chassis systems.

Construction & Materials

Mansory produces the front lip with side flaps as a three-piece pre-assembled unit: the centreline blade and two canard flap sub-assemblies are bonded and riveted in the Mansory workshop before dispatch, so the customer receives a single component requiring no on-car sub-assembly alignment. The centreline blade uses the same 3K twill 200 g/m² outer cloth and three ±45° internal plies as the standalone front lip, ensuring consistent weave appearance across the programme when both parts are fitted to different vehicles. The canard flaps are laminated from a denser 2×2 twill 245 g/m² cloth selected for the higher chord-loading imposed by the flap's angle-of-attack geometry — the canard trailing edge carries substantially more bending moment per unit width than the flat centreline blade.

All three sub-assemblies cure in the same 120 °C autoclave batch to guarantee identical resin-cure state and surface-lacquer colour batch. The canard-to-blade junction is bonded with a room-temperature-resistant structural film adhesive and mechanically fastened with 4× M5 titanium rivets per flap — an over-designed connection that ensures the canard geometry does not deflect relative to the blade under high aerodynamic loading at sustained motorway speed.

• Centreline blade weave: 3K twill 200 g/m² carbon cloth, matching standalone front-lip specification
• Canard flap weave: 2×2 twill 245 g/m² carbon cloth for higher chord-load resistance
• Cure: autoclave 120 °C, 6 bar, all three sub-assemblies in the same batch
• Canard junction: structural film adhesive + 4× M5 titanium rivets per flap
• Wall thickness: 2.8–3.2 mm centreline blade, 2.5–3.0 mm canard flap chord section
• Component weight: 1.8–2.4 kg fully assembled including mounting hardware
• Hardware: 6× OEM clip-nut inserts, 4× M6 stainless studs (blade), 2× M6 self-tapping adapters (canard outer tips)
• Finish: 2K polyurethane clear coat, UV-stabiliser concentrate; satin variant available for canard flaps independently

Design & Visual Function

Each canard fin extends approximately 120 mm outboard from the outer end of the centreline blade, canted upward at a jib angle of 8–12° from the fascia horizontal. This geometry creates a low-pressure zone on the upper-canard surface as airflow accelerates around the fin's leading edge, shedding a concentrated trailing-edge vortex that rotates inboard-to-outboard when viewed from above. The vortex path leads directly toward the front wheel-arch aperture, where it displaces the turbulent air that the rotating tyre generates. By introducing a pre-organised vortex structure ahead of the wheel, the canard geometry reduces the chaotic mixing that would otherwise migrate to the front strut-mount region and contribute to aerodynamic buffeting at high speed.

The combined front-face visual effect is significantly more purposeful than the lip alone. Where the centreline blade creates a single horizontal datum, the canard fins add a swept three-dimensional plane that reads like a fighter-aircraft leading-edge root extension from the front three-quarter angle. On the G09's broad front face — already dominated by the kidney grille — the canard geometry echoes the outward-expanding kidney aperture shape, suggesting an aerodynamic intent consistent with the XM's M-programme identity. In 3K twill gloss lacquer, the diagonal weave of the canard upper surface reflects light at a different angle from the centreline blade below, adding micro-scale visual motion to a static car at rest.

For owners who have considered the standalone front lip, the side-flap variant represents a meaningful aerodynamic upgrade rather than merely a visual elaboration. The vortex strength generated by the canard fins scales with the square of vehicle speed — at 130 km/h the lateral vortex circulation is roughly three times more energetic than at 80 km/h, meaning the benefit is most pronounced precisely where the BMW XM's high-speed directional stability characteristics are most relevant.

Compatibility & Fitment

Confirmed fitment: BMW XM G09 2023-onwards for all trim variants — base XM (M Hybrid 644 hp / 800 Nm) and XM Label Red / 50 Jahre M (748 hp / 1000 Nm). The canard flap span of 120 mm per side is designed to clear the factory 23-inch M xDrive wheel package at full steering lock with adaptive M Suspension at the standard ride-height setting; the installation guide includes a front-corner clearance check at both full-lock extremes as a mandatory final step. LHD and RHD variants are identical — the G09 front fascia is symmetric and no canard-flap geometry modification is required for either steering configuration. The part is compatible with the factory M Carbon exterior package and does not interfere with factory front parking sensor clusters, which are positioned above the bumper crease line away from the lip and canard flap zone.

Installation & Reversibility

Installation follows the same clip-nut and M6 stud procedure as the standalone front lip, with the addition of two M6 self-tapping adapter screws at the canard outer tip positions — these engage into the bumper side-fin plastic substrate and provide the third point of fixation for each canard flap without drilling the painted outer surface. Total installation time is 60–90 minutes on a lift. The canard flap jib angle is factory-set during Mansory's pre-dispatch assembly; field adjustment of the canard angle is not possible without removing the flap from the centreline blade assembly. Removal is fully reversible: the two self-tapping adapter screws unthread cleanly, the VHB tip pads cut with fishing line, and the OEM bumper surfaces are restored without residue.

Pairing within the Mansory BMW XM programme

This component pairs naturally with the Front lip Mansory for BMW XM when building a comparison between the two front-end options — however, only one may be fitted at a time as they occupy the same lower-fascia mounting positions. For the full lower-body aero treatment, the Fenders and door extension Mansory for BMW XM widens the wheel-arch profile rearward of the front canard vortex zone, maximising the aerodynamic benefit of the front-corner vortex management. The Side skirts lip Mansory for BMW XM carries the horizontal lower-body datum rearward from the front lip's outer corner, ensuring the visual transition from the canard fin base to the sill panel is smooth and architecturally consistent.

Maintenance & Durability

The canard flaps are exposed to the same stone-chip and UV environment as the centreline blade, with the added consideration that their trailing-edge radius is significantly tighter — approximately 3–4 mm — making the clear-coat layer at the trailing edge thinner and more susceptible to chip penetration. Address any chip to the canard trailing edge promptly: the high-concentration torsional loading at the trailing-edge fibres makes moisture ingress at this location more consequential than at the broad, flat centreline blade. For washing, the canard flap upper surface should be rinsed with a directed nozzle from the leading edge toward the trailing edge to avoid forcing grit against the thin trailing-edge profile. SiO₂ sealant application should extend to the canard flap surfaces, treating them as a priority zone during each detail session given their aerodynamically active geometry and relatively small surface area that makes thorough application quick. The structural titanium rivets at the canard-to-blade junction are non-corrosive and require no maintenance, but inspect the junction line annually for any resin micro-cracking at the film-adhesive bond edge — early treatment with a drop of penetrating epoxy prevents progressive delamination at the joint.

Lead Time & Warranty

Lead time is 2–3 weeks from confirmed order for the front lip with side flaps assembly, covering autoclave cure, CNC trimming of all three sub-assemblies, canard-to-blade bonding and riveting, and pre-dispatch dimensional check. Accelerated 10-business-day build is available subject to workshop capacity. The component carries a 12-month warranty against manufacturing defects: delamination of either the blade or canard laminates, canard-to-blade bond failure, rivet-head backing pull-through, clear-coat crazing under normal service, and clip-nut thread failure. Impact damage, incorrect jib-angle loading from fitting errors, and paint overspray contamination are excluded.

FAQ

Q: Should I choose the front lip with side flaps over the standalone front lip?
A: If your primary goal is the visual horizontal datum line at the front fascia, the standalone front lip is sufficient. If you use the XM at sustained motorway speeds above 100 km/h and notice front-end sensitivity to crosswinds or lane-change feel, the canard flap geometry provides a measured aerodynamic benefit beyond styling. The two parts are priced differently — discuss your priorities with our team and we will recommend the appropriate option.

Q: Can the canard flap angle be adjusted after installation?
A: The 8–12° jib angle is set during Mansory's pre-dispatch assembly and is not field-adjustable without removing the canard from the centreline blade. Mansory can supply the assembly at a different jib angle to customer specification if requested at order time — specify preferred angle increment in degrees relative to the fascia horizontal.

Q: Does the front lip with side flaps fit the XM Label Red without modification?
A: Yes — the G09 front fascia geometry is identical across all XM trim variants. The Label Red's visual lower fascia treatment uses the same clip and datum positions as the base XM. No modification is required for Label Red fitment.

Complete your BMW XM front aero brief with Mansory's canard-equipped lip assembly. Contact our team: WhatsApp +44 7488 818 747 or [email protected].
