Front bumper lip Mansory Carbon for Lamborghini Aventador S

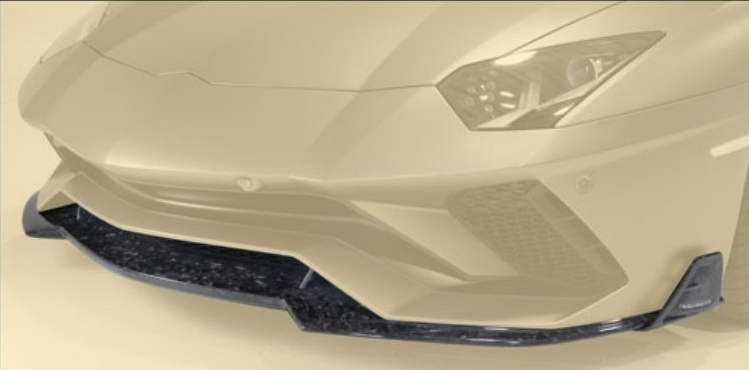

Mansory Carbon Front Bumper Lip for Lamborghini Aventador S

The front bumper lip is the lowest carbon element on the Aventador S nose — a thin splitter blade that bonds beneath the OEM (or Mansory replacement) front fascia and reaches forward of the original valance edge. Within the wider Mansory Body Kit for Lamborghini Aventador S programme it occupies the role that body-shop people call the chin: it lengthens the visual overhang, drops the apparent ride height by a couple of fingers, and feeds the pressure differential that the front-bonnet vents and brake ducts later exploit. Aventador S geometry is the pre-SVJ contour — a softer chin radius than the SVJ — so the Mansory lip restores the harder, knife-edge plan view that the LP740-4 silhouette flatters. With the naturally aspirated 6.5-litre V12 sitting low and central, scissor doors closed and the rear-wheel-steering quietly trimming yaw, a tighter front lip simply makes the whole car look like it has been shrink-wrapped to the road.

Construction & Materials

The lip is laid up as a single-shell carbon component over a CNC-milled MDF master, then trimmed and edge-finished by hand. Mansory uses a 3K twill skin on the visible face for the canonical Lamborghini-grade weave grain, with a 2K plain-weave or unidirectional sub-layer on hidden faces to control torsional flex along the splitter's leading edge. The cure runs in autoclave under vacuum bag at roughly 6 bar, producing a void-free skin with near-mirror gel-coat depth on lacquered orders or a satin matte finish on raw-look orders.

• Skin: 3K twill prepreg, ~0.6 mm visible face
• Sub-skin: 2K plain or UD reinforcement at the splitter tip, ~1.2 mm
• Core: closed-cell foam stiffener under the leading-edge flange (selective)
• Wall thickness: 2.0–3.5 mm graded, thicker at fastener bosses
• Component mass: approximately 2.6–3.1 kg trimmed
• Mounts: M5 captive bosses (4–6 points) plus methacrylate adhesive bead
• Finish options: clear lacquer 2K, raw matte sealer, body-coloured paint break
• Edge: hand-bevelled, sealed with flexible polyurethane to resist chip-out on kerb strikes

Design & Visual Function

Visually the lip extends the front overhang by roughly 35–55 mm at the centreline, tapering to ~15 mm at the corners where it meets the side-skirt lip line. The leading edge is plan-form straight — no scallops — which is the Mansory house cue and reads instantly against the curved pre-SVJ valance. Owners who run lacquered carbon get a depth-of-field effect under low sun: the twill weave appears to recede behind the clear, whereas a raw matte finish swallows light and sharpens the perceived edge geometry.

Aero-wise the lip works as a static splitter rather than an active surface. It accelerates the air under the chin, cleans up the stagnation zone in front of the OEM lower grille, and increases the static pressure on the upper face of the bumper — which is the textbook way of pulling front-axle download out of a road-car nose without resorting to a canard array. The Aventador S relies on passive aerodynamics rather than any movable nose surface, so front-axle balance is purely mechanical-plus-static-aero, and a deeper front lip is one of the few legitimate levers an Aventador S owner has to bias balance toward the front at speed.

The lip also frames the lower air entries that feed the radiators sitting either side of the front compartment. Mansory's plan view leaves the OEM radiator inlets clear and aligns the splitter tip just ahead of the lower cooling apertures so that the slug of air arriving at the radiator face is not pre-disturbed by a raised step.

Compatibility & Fitment

Designed for the Lamborghini Aventador S (LP740-4 S) coupé and Roadster, model years 2017–2021. Compatible with the OEM front bumper and with the Mansory replacement front bumper specified in the wider kit. Pre-SVJ bumper geometry only — do not fit to an SVJ or to the JS1 fascia, which have different lower-jaw cuts. OEM front parking sensors, washer jets and tow-eye access remain functional. The lower radiator intakes and brake-cooling ducts are not occluded.

Installation & Reversibility

Bench time is typically 4–8 hours including paint prep. Workflow: lift on a four-post or scissor with a low-clearance ramp; remove fender liners' forward sections to access the bumper underside; offer the lip up dry, scribe the bond line with a fine pencil, and verify panel gap to the OEM valance edge (target 2–3 mm). Surface prep is critical — the OEM bumper substrate is painted thermoplastic, the Mansory lip face is gel-coated CFRP, and methacrylate adhesive is the chemistry of choice because it tolerates both substrates and stays flexible across the V12 thermal cycle. Captive M5 bosses through the OEM lower flange take the mechanical load; the methacrylate bead carries shear and seals the joint against road spray. Allow 24 h cure before road use. The kerb-impact reversibility story is honest: a hard kerb strike will shear the bond bead before it tears the OEM bumper substrate, which is the design intent — the lip is the sacrificial element and is replaceable without bumper damage. Recommended installer: Lamborghini-certified body shop or a Mansory-trained fitter for first installation; subsequent re-bonds are within reach of an experienced detailer.

Pairing within the Mansory Aventador S programme

The standard front lip is the conservative choice in a three-step front-aero ladder. Owners who want a more aggressive front signature step up to the Mansory Carbon Front Bumper Lip with High Flaps for Lamborghini Aventador S, which adds vertical end plates that act as small canards. Visually the lip is normally specified together with the Mansory Carbon Front Bumper Air Intake Cover for Lamborghini Aventador S so the entire lower face of the bumper reads as one carbon plane, and with the Mansory Carbon Replacement Front Air Intake for Lamborghini Aventador S when the owner wants a fully reworked front grille architecture rather than only a splitter add-on. A common paint break is body colour on the bumper above the parting line and clear-lacquered weave on the lip and intake covers below — the visual datum line then sits exactly on the splitter's upper flange.

Maintenance & Durability

Lacquered carbon is essentially a paint surface and is treated as one. A pH-neutral shampoo, a clean two-bucket method and a soft-touch microfibre are sufficient for weekly care. Avoid alkaline traffic-film removers, ammonia-based glass cleaners that drift onto the lacquer, and any abrasive sponge — the splitter's gel-coat is hard but not infinitely scratch-resistant. A modern silica-based ceramic coating gives 18–36 months of UV protection and is the preferred top layer for a daily-driven Aventador S; carnauba wax is acceptable for show cars but needs more frequent renewal. Stone chips on the splitter's leading edge are inevitable and are repaired with a carbon-tinted touch-up resin and a re-flatted lacquer coat — a competent paint shop will turn the repair around in a single working day. Raw-finish lips age more gracefully against chips because there is no clear coat to fracture; however, they need an annual UV sealer refresh to keep the weave from bleaching to a flat grey.

Lead Time & Warranty

Lead time is 4–8 weeks from order to dispatch — Mansory parts are bespoke production, autoclaved to order rather than shelf-stocked, and finish (raw, lacquered, painted) is selected at order. A 12-month manufacturer warranty covers laminate defects, delamination and gel-coat failure under normal use; kerb strikes, track contact and chemical attack from incorrect cleaners are excluded as expected.

FAQ

Q: Coupé and Roadster — same lip?
A: Yes. The front bumper geometry is identical between the Aventador S coupé and Roadster, so the lip is a single SKU.

Q: Will it ground out on standard ride height?
A: Ground clearance loss is roughly 25–35 mm at the splitter tip versus the OEM valance. With the front lifter engaged the car clears most domestic ramps; without the lifter the kerb-strike risk increases on driveway entries and speed bumps. Owners who specify the lip almost always have the front-axle lifter functioning.

Q: Bonded or bolted — and which fails better?
A: Both. Captive M5 bosses take normal aero load; methacrylate adhesive carries shear and seals the joint. On a hard kerb strike the bond shears first by design, so the OEM bumper substrate stays intact and only the lip is replaced.

Q: Lacquered or raw weave?
A: Lacquered reads more dramatic on darker body colours and gives deeper UV protection; raw matte reads cleaner against light bodies (Bianco, Grigio) and ages more gracefully against stone chips. Both are stocked finishes.

Q: Can I paint-break the lip in body colour?
A: Yes, and it is a popular spec — the splitter's upper flange is the natural datum line for the break.

Pair the front lip with the Mansory front intake cover and the front bonnet trim for a unified carbon nose. To configure finish, paint break and ride-height notes for your Aventador S, contact us via WhatsApp +44 7488 818 747 or [email protected].
