Front bumper air intake cover Mansory Carbon for Lamborghini Aventador S

Mansory Carbon Front Bumper Air Intake Cover for Lamborghini Aventador S

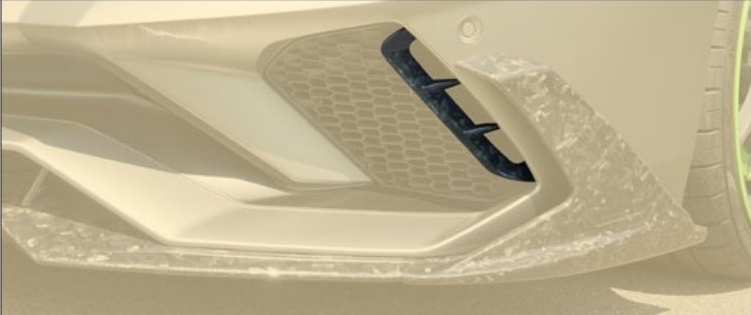

The Mansory Carbon Front Bumper Air Intake Cover is a framing finisher that wraps the perimeter of the Aventador S front bumper intake aperture without altering the duct itself. Where a duct-replacement piece changes the throat shape, this cover sits as a face-layer skin around the OEM opening — the inner cooling path that feeds the front radiators, brake-cooling channels and oil-cooler intakes is left exactly as Sant'Agata engineered it. Owners pick this part as part of the wider Mansory Body Kit for Lamborghini Aventador S when they want the visual upgrade of a woven-carbon mouth on the LP740-4 S facelift contour, but want zero impact on radiator deltaT, NA V12 thermal load or front-axle aero. It is the lightest entry point into the Mansory carbon programme: drop-in retrofit, scissor-door geometry untouched, rear-wheel-steer calibrations untouched, AWD calibration untouched.

Construction & Materials

The cover is laid up as a face-skin shell rather than a structural duct. Mansory uses a thin-wall woven-prepreg laminate over a tooled mandrel, which keeps the lacquer mirror flat and the weave threads parallel to the intake throat — that alignment is what makes a finisher read as factory rather than aftermarket. A mesh element is co-bonded behind the aperture frame on customer request, painted satin black for depth, so the eye reads carbon perimeter, mesh middle, OEM duct beyond.

The bond face is contoured to the bumper substrate for shadow-free seating; methacrylate-compatible primer is used so the laminate can bond directly to the Aventador's CFRP bumper skin without substrate fight.

• 3K twill prepreg face, weave aligned to the long axis of the intake mouth so the threads run with the airflow direction, not across it
• Autoclave-cured at 120 C against a tooled aluminium mandrel — yields a mirror lacquer plane with no orange-peel
• Wall thickness 1.4–1.6 mm at the frame perimeter, tapered to 0.9 mm at the leading lip so the cover meets the bumper face without a step
• Per-side mass approximately 240–290 g, full LH+RH pair around 0.5–0.6 kg
• Honeycomb mesh insert (optional) bonded behind the frame, satin-black powder-coated so it sinks visually and the carbon frame leads the eye
• Mounting via four pre-located adhesive pads plus two hidden mechanical clips at the upper edge — no drilling into the OEM bumper
• Lacquered gloss as standard; satin / matte / raw-weave variants available, plus open-pore and tinted-clear options
• UV-stable two-pack clear coat, ISO 4892 weathering tested, lifetime measured in years rather than seasons

Design & Visual Function

The Aventador S front fascia uses pre-SVJ geometry — a different shoulder line on the bumper, different intake aperture proportions, no SVJ-era cut-outs. A finisher rather than a duct replacement is the right choice when the owner has already specified custom paint or a multi-coat finish on the bumper itself: the carbon frame hits as a silhouette accent against painted bodywork, and the contrast between lacquered weave and painted clearcoat is what carries the upgrade visually. The cover's frame width is calibrated so that, at standing distance, the eye reads a continuous carbon ring around the mouth — not a sticker, not a stripe, a structural-looking frame.

Because the OEM aperture is preserved, the V12 NA airbox feed via the dorsal scoop is unaffected, the front oil-cooler intake path is unchanged, and brake-duct geometry to the front rotors stays factory. There is no aero penalty and no thermal penalty: the cover lives entirely on the visible face, downstream airflow unmodified. For owners who track their car occasionally on Corsa mode but do not want to validate a new duct geometry against radiator-out temps, this is the safer carbon spec.

Weave-alignment matters more on a small part than on a large one. A bumper lip can disguise a slightly off-axis weave under sheer area; a 240 g finisher cannot. Mansory's tooling holds the twill diagonal at a defined angle relative to the leading lip, so when the part is mounted the diagonal lines visually feed inward toward the throat, framing the intake the way a picture frame frames an image. Roadster customers who add the cover alongside a contrasting soft-top get a particularly clean read — the front mouth gains a focal weight that complements the open roofline.

Compatibility & Fitment

Designed for the Lamborghini Aventador S (LP740-4 S) coupé and Roadster, model years 2017–2021. The cover follows the pre-SVJ bumper contour and is not interchangeable with SVJ, Competition, Carbonado, Cabrera or JS1 fascias — those use different aperture geometry and different shoulder break-lines. OEM Lamborghini parking sensors, washer jets, ambient-temperature sensor and front camera mounting (where fitted) are all preserved; no harness reroute is required. Lower-side exhaust outlet clearance is irrelevant at the front but the cover does respect the front splitter geometry below it, so a stacked install with a Mansory front-bumper-lip drops in cleanly.

Installation & Reversibility

Workshop time is roughly 30–45 minutes per side for first fitment, less for repeat work on a known car. Tools are short: plastic trim wedges, isopropyl-alcohol wipes, a heat gun for the adhesive activation, torque key for the upper hidden clips. The bumper face is degreased, the bond pads keyed, the cover offered up dry first to confirm shadow-line alignment, then bonded with the methacrylate-compatible activator and seated against the OEM bumper skin under hand pressure for the cure window. Hidden upper clips engage by feel and lock the cover against vibration.

Reversibility is genuine: the adhesive system releases with controlled heat (heat-gun at 80–90 C, peel from the top edge) and the bumper substrate is left as it was — no drilled holes, no cut-outs, no OEM material removed. That makes this part a strong choice for leased cars or for owners who want to revert to factory before resale and bank the carbon upgrade for a different chassis. DIY-capable for a careful owner with bodywork experience; otherwise a Lamborghini-certified body shop or a Mansory-trained installer will complete the job inside an hour.

Pairing within the Mansory Aventador S programme

The cover is a sibling — not a substitute — to the front-end aero parts in the Mansory carbon range. The natural complementary spec is to stack the finisher with a front splitter and an integrated duct-replacement, building visual depth front-to-back across the fascia.

• Front bumper lip — sits below the cover, completes the carbon line across the lower bumper edge
• Replacement air intake — front — the duct-replacement counterpart for owners who want a reshaped throat rather than a frame finisher (choose one or the other, not both)
• Front bumper lip with high flaps — the more aggressive lower-edge spec, pairs visually with the framed aperture above

The decision tree is straightforward. Pick the cover when the priority is carbon presence with zero aero or thermal change. Pick the replacement air intake when the priority is reshaped airflow and a deeper sculpt. Stack the cover with one of the two bumper lips for a layered front-end statement that still leaves the duct itself OEM.

Maintenance & Durability

Lacquered carbon on a front-facing part takes the worst of the road environment — bug strike, road salt residue, brake-pad dust thrown forward by airflow at speed. The lacquer system handles all of that with routine care: pH-neutral shampoo, two-bucket method, a dedicated soft microfibre kept apart from wheel cloths. Avoid alkaline degreasers, ammonia-based glass cleaners, abrasive sponges and silicone tyre dressings near the carbon edge — those are what kill the lacquer plane long before the laminate itself fails.

A ceramic coating layered over the factory clearcoat is the single highest-value upgrade for a front-facing carbon piece: it raises chemical resistance, repels bug protein, and makes salt rinse-off effortless. Self-healing PPF over the leading edge is sensible if the car sees motorway miles. UV exposure is the slow killer of lacquered carbon — garaged cars or covered storage will see the cover stay book-matched and crack-free for years; a permanently outdoor car should expect the lacquer to need refresh on a multi-year cadence. Stone-chip repair is straightforward at a competent body shop: localised sand, isolate, re-lacquer, polish back to plane.

Lead Time & Warranty

Lead time runs 4–8 weeks from order confirmation, reflecting Mansory's bespoke production cadence and the autoclave cycle window. A 12-month warranty covers manufacturing defects — laminate voids, delamination, lacquer cracking under normal use. The warranty does not cover stone-chip damage, accidental impact, or misuse of incompatible cleaning products.

FAQ

Q: Does the cover restrict airflow into the front intake?
A: No. It is a face-frame finisher, not a duct. The OEM aperture is fully preserved and downstream cooling paths — radiators, oil cooler, brake ducts — see the same airflow as factory.

Q: How is this different from the Replacement air intake — front?
A: The replacement reshapes the throat itself, changing the duct geometry. The cover only frames the existing aperture. Pick one based on whether you want aero/visual change (replacement) or pure visual finish with no aero change (cover).

Q: Will it fit the Roadster as well as the coupé?
A: Yes. The Aventador S front bumper geometry is shared between coupé and Roadster, so the cover bonds the same way on either chassis.

Q: Does it interfere with parking sensors or the front camera?
A: No. The cover routes around all OEM sensor cut-outs and the camera aperture. No recalibration is required after installation.

Q: Can I reverse the install if I sell the car?
A: Yes. The adhesive system releases under controlled heat with no damage to the OEM bumper face. The cover detaches cleanly and the bumper returns to factory appearance.

Q: What weave and finish options are offered?
A: 3K twill is standard, 2K plain and forged-look on request. Lacquered gloss as default, with satin, matte, raw-weave, open-pore and tinted-clear variants available.

Q: Does the SVJ version of this part fit the S?
A: No. SVJ uses different bumper geometry and different aperture proportions. Aventador S parts are dedicated tooling for the LP740-4 S facelift contour.

Pair this finisher with a Mansory front bumper lip and the front-end of the Aventador S takes on the layered carbon read that the rest of the body kit completes. For specification, weave selection or to confirm options on your VIN, contact WhatsApp +44 7488 818 747 or [email protected].
