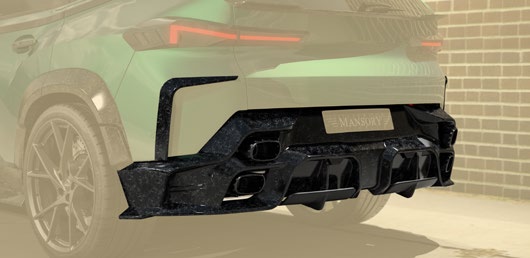

Rear diffuser with side flaps Mansory for BMW XM

Rear diffuser with side flaps Mansory for BMW XM

The Mansory rear diffuser with side flaps represents the highest-specification rear underbody aero component within the Mansory Carbon Fiber Body kit set for BMW XM. Where the standalone rear diffuser manages ground-boundary flow through Venturi tunnels and exhaust integration, the side-flap variant adds a pair of end-fence fins at the outer diffuser edges that act as pressure-sealing walls, preventing the lateral bleed that dissipates suction energy from the tunnel exits. On the BMW XM's G09 platform — a 2,750 kg PHEV SUV driven by the S68 twin-turbo V8 hybrid system through M xDrive AWD — underbody aerodynamics operate under the additional constraint that ride height is managed by the adaptive M Suspension, which introduces ride-height variation across the diffuser-to-ground gap. The end-fence geometry partially decouples pressure-recovery efficiency from this ride-height sensitivity by sealing the tunnel exits laterally: even as the diffuser floor rises or falls with suspension travel, the side flaps maintain the separation of low-pressure tunnel air from ambient atmospheric pressure at the tunnel mouth edges. The result is a more consistent rear-axle downforce across the full adaptive suspension range.

Construction & Materials

The rear diffuser with side flaps is manufactured as a single co-cured unit in Mansory's autoclave: the main diffuser floor, Venturi strake vanes, and side-flap fin elements are laminated together in one tooling assembly, eliminating the bonded junction lines that a secondary bolt-on flap approach would introduce. Co-curing the flaps with the floor guarantees that the fin-to-floor transition radius maintains its geometry under the thermal cycling and mechanical vibration of road use — a critical requirement, as a bonded flap that lifts at its base creates a turbulence generator precisely at the ground-plane exit zone where the diffuser needs smooth flow.

The floor laminate uses the same 2K plain-weave carbon schedule as the standalone diffuser, with the side-flap fin sections laminated in 3K twill for a deliberate weave-contrast detailing effect at the outer vertical panels — the visual transition from plain-weave floor to twill-weave flap creates a natural boundary between functional undertray and visible exterior element. Cure temperature is 135 °C throughout, maintaining the elevated Tg required for the exhaust-aperture thermal environment. Total component weight is 3.0–3.8 kg including end-fence hardware and inox exhaust-aperture frames.

• Floor weave: 2K plain-weave carbon, same schedule as standalone diffuser
• Side-flap fin weave: 3K twill for deliberate floor-to-flap visual contrast
• Manufacturing method: co-cured single tooling assembly — no bonded junctions at fin-to-floor transition
• Cure: autoclave 135 °C, 6 bar — elevated for exhaust-zone proximity
• Wall thickness: 3.0–3.6 mm floor, 2.8–3.2 mm side-flap vertical panels
• Component weight: 3.0–3.8 kg including exhaust-aperture inox frames and M8 hardware
• Side-flap height: 85–95 mm above ground-plane datum at maximum extension
• Hardware: 10× M8 stainless hex-cap bolts (2 additional versus standalone diffuser for flap-tip fixation)

Design & Visual Function

The side-flap end-fence geometry functions as a pressure-sealing barrier at the lateral boundary of the diffuser tunnel exits. Without end fences, the low-pressure zone created inside the Venturi tunnels bleeds outward across the tunnel-mouth edges as high-pressure ambient air tries to equalise into the suction zone. This lateral bleed reduces the pressure gradient across the diffuser floor, attenuating downforce generation. The end-fence fins present a vertical surface at the tunnel exits that forces the atmospheric air to travel above the flap rather than directly into the tunnel mouth, preserving the pressure differential. The aerodynamic gain scales with the square of speed and the end-fence height — Mansory's 85–95 mm flap projection represents a practical optimum between ride-height clearance and suction-sealing effectiveness for the XM's 175 mm nominal underbody ground clearance.

The side flaps also serve as vortex generators in their own right: as underbody airflow exits the tunnel mouths and encounters the flap trailing edge, it sheds a pair of counter-rotating vortices that entrain the diffuser wake and sustain the low-pressure zone further downstream than the standalone diffuser floor geometry achieves. This additional downstream suction contribution is especially relevant for the XM's tail-heavy mass distribution with the battery pack over the rear axle — maintaining rear-axle aerodynamic load during motorway-speed cornering contributes to the linear rear-end stability that M engineers calibrate into the electric torque vectoring algorithm.

At the visual level, the side flaps transform the rear three-quarter view of the G09 dramatically. The end-fence fins rise vertically from the outer diffuser corners in a profile that brackets the full-width carbon architecture between the wheel arches — a visual language more common to endurance racing machinery than road SUVs. The deliberate weave contrast between the plain-weave floor tunnels and the 3K twill flap surfaces creates a layered carbon texture that rewards close inspection and photographs distinctively under raking rear light.

Compatibility & Fitment

Confirmed fitment: BMW XM G09 2023-onwards, all variants including base XM (M Hybrid 644 hp) and XM Label Red / 50 Jahre M (748 hp). The side-flap fin geometry is calibrated for the XM's rear-corner wheel-arch geometry: the flap outer edges maintain a 25 mm clearance from the rear tyre sidewall at full static ride height with 23-inch factory M xDrive wheels and the standard tyre-width specification. Lowering via adaptive M Suspension sport mode reduces clearance by approximately 8 mm — adequate for road use but worth confirming if non-standard tyres with wider-than-OEM section widths are fitted. LHD and RHD configurations are identical. The diffuser with side flaps is a direct replacement for the standalone rear diffuser — the mounting bolt positions are identical, so owners upgrading from the standalone unit do not require any body modification.

Installation & Reversibility

Installation procedure follows the same sequence as the standalone rear diffuser, with two additional M8 hex-cap bolts engaging into the flap-tip fixation points on the rear bumper corner profiles. Total installation time is 2–3 hours on a lift to accommodate the additional alignment task of positioning the side-flap outer tips parallel to the rear corner body lines. The flap-tip fixation points require pilot holes of 6 mm diameter in the bumper corner plastic substrate — the only drilling step in the entire Mansory BMW XM aero package. Mansory supplies a drill template and 6 mm HSS drill with each unit to ensure correct positioning. Removal is reversible: the pilot holes can be filled with OEM-colour bumper repair filler for a clean restoration of the factory appearance.

Pairing within the Mansory BMW XM programme

The rear diffuser with side flaps is the full rear-underbody specification and pairs most logically with the Rear diffuser Mansory for BMW XM as a comparison reference — only one may be fitted at a time, as they share the same subframe mounting positions. For upper-surface rear load, the Rear decklid spoiler Mansory for BMW XM provides trailing-edge downforce that balances the underfloor suction this diffuser generates, creating a paired aero couple at the rear axle. To tie the rear aero widebody visual into the mid-body section, the Fenders and door extension Mansory for BMW XM extends the rear wheel-arch profile to match the visual mass of the side flap fins.

Maintenance & Durability

The diffuser with side flaps presents a larger total surface area to maintain compared with the standalone unit, and the vertical flap surfaces accumulate tyre rubber and road film differently from the horizontal floor. In the wheel-arch adjacent zone, the flap outer surface receives the full tyre-spray plume from the rear wheels — this is the primary source of brown-tinge contamination on the flap outer face and should be addressed with an initial high-pressure rinse from a downward angle before contact washing. The flap inner face (tunnel-side) remains relatively clean as it is shielded within the diffuser architecture. The co-cured fin-to-floor radius should be inspected annually for surface crazing — a hairline crack at the radius transition can indicate sub-surface resin stress and should be addressed immediately with low-viscosity penetrating epoxy. The same exhaust-aperture maintenance protocols from the standalone diffuser apply: annual inspection of the ceramic sealant bead at the CNC-trimmed aperture edges, treatment of any stainless heat tint with appropriate cleaner, and SiO₂ ceramic coating application to all exterior surfaces after installation.

Lead Time & Warranty

Lead time for the rear diffuser with side flaps is 3–5 weeks from confirmed order — the extended co-cure tooling setup and single-session autoclave bake for the integrated floor-flap unit require precise scheduling within Mansory's production queue. Rush builds are possible to 16 business days subject to tool availability. The 12-month manufacturing warranty covers the co-cured flap-to-floor junction, exhaust-frame bond, diffuser floor delamination, lacquer crazing, and all mounting hardware. The pilot-hole drilling operation is not covered if performed incorrectly outside the supplied template — Mansory recommends an authorised fitter perform this step.

FAQ

Q: Is there a meaningful real-world aerodynamic difference between the diffuser and the diffuser with side flaps?
A: At speeds below 80 km/h, the difference is modest. Above 100 km/h the end-fence geometry meaningfully reduces lateral suction bleed from the tunnel exits, increasing the rear-axle load contribution from the diffuser floor. For drivers who use the XM on motorways and fast dual carriageways, the side-flap variant is the stronger aerodynamic specification. For predominantly urban use, the visual and light aerodynamic distinction may be the deciding factor.

Q: Does the pilot-hole drilling step void any BMW warranty?
A: The pilot holes are located in the bumper corner plastic substrate — a non-structural cosmetic body panel. BMW's factory warranty covers drivetrain and structural components. The bumper plastic is a cosmetic element that can be filled and refinished if desired at any future point. Confirm with your dealer if warranty clarity is important to you before fitting.

Q: What is the ride-height clearance of the side flap tips with 23-inch wheels in sport-mode suspension?
A: At standard adaptive M Suspension sport-mode ride height with 23-inch OEM wheels and standard tyre sections, the side-flap outer tip maintains approximately 17 mm clearance from the rear tyre sidewall. Mansory's installation guide specifies a minimum clearance of 12 mm — confirmed during the mandatory wheel-clearance check at installation sign-off.
