Rear decklid spoiler Mansory for BMW XM

Rear decklid spoiler Mansory for BMW XM

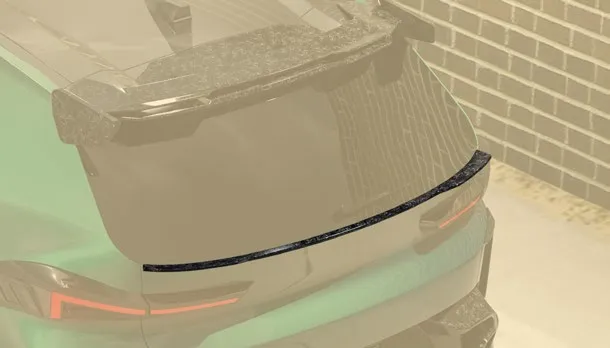

Positioned at the BMW XM's decklid lower trailing edge, the Mansory carbon rear decklid spoiler is the lower wing element of the rear aero architecture within the Mansory Carbon Fiber Body kit set for BMW XM. While the roof spoiler above manages boundary-layer separation at the roofline, the decklid spoiler addresses the pressure-recovery gradient at the lower decklid surface immediately above the quad-exhaust outlets — a zone where the XM's bluff rear face generates the most concentrated lift contribution. The twin-stack quad-exhaust of the G09 XM exits at the lower rear, and the upward-convected exhaust heat plume interacts with the airflow field at precisely the decklid trailing edge where this spoiler blade operates. Mansory engineers the decklid spoiler's chord angle to both manage the trailing-edge rear-axle lift and to clear the exhaust heat plume path, ensuring the carbon blade does not accumulate thermal discolouration from hot-gas convection during sustained high-performance driving. On the BMW XM's ~2,750 kg S68 twin-turbo V8 hybrid platform with M xDrive AWD, the combination of roofline and decklid spoiler creates the upper-body rear aero couple that partners the underbody diffuser work below.

Construction & Materials

The rear decklid spoiler is laminated in 3K twill carbon cloth over an aluminium mandrel tool profiled to the G09 decklid lower trailing edge geometry. The blade section is a single-curvature extrusion 1,380 mm wide — narrower than the full-width roof spoiler to clear the rear lamp cluster apertures at each end of the decklid. The outer surface receives a single continuous 200 g/m² twill drape for surface consistency, with three internal plies at 0°/90° and ±45° orientations providing the chord-wise bending stiffness and torsional stability under aerodynamic loading. The mounting foot carries a pre-fitted 3 mm EPDM gasket that accommodates the decklid's outward taper angle and prevents direct contact between the carbon foot and the decklid lacquer.

Autoclave cure is conducted at 120 °C, 6 bar, in the same batch as the roof spoiler where order timing permits — this guarantees colour-batch consistency between the two spoilers when both are ordered together. The blade trailing edge is cut on a 5-axis CNC machine to a 2.5 mm radius that minimises the turbulence-generating bluntness of a square-cut trailing edge without reducing the effective aero chord length of the blade.

• Outer weave: 3K twill 200 g/m², matched to roof spoiler batch where possible
• Blade width: 1,380 mm — clears rear lamp cluster apertures at each end
• Internal plies: 0°/90° stiffness + ±45° torsion — three-ply schedule
• Cure: autoclave 120 °C, 6 bar, 4-hour dwell; co-batch with roof spoiler on combined orders
• Trailing-edge radius: 2.5 mm CNC-cut — minimises blunt-edge turbulence generation
• Component weight: 0.7–1.0 kg including EPDM gasket and mounting hardware
• Hardware: 3M VHB 5952 tape + 3× M6 countersunk studs through decklid trailing edge
• Finish: 2K polyurethane clear coat, UV-stabilised; heat-resistant lacquer variant for Label Red owners

Design & Visual Function

The decklid spoiler blade extends 42 mm rearward from the decklid trailing edge at an 8° downward cant from the decklid horizontal — the negative angle relative to the decklid surface is the key aerodynamic distinction from the roof spoiler above, which cants upward. The downward cant generates direct rear-axle downforce from the blade's lower pressure surface during forward motion, contributing to the rear-axle load that improves high-speed directional stability for the G09's rear-biassed mass distribution. The combination of an upper spoiler canting upward (to delay separation and reduce drag) and a lower spoiler canting downward (to generate positive downforce) is the dual-element wing principle applied within the constraints of a passenger-car road body, creating a more aerodynamically capable arrangement than a single roofline spoiler alone.

The proximity of the twin-stack quad-exhaust outlets below the decklid trailing edge influences the blade cant angle selection. The XM's quad tips exit at a downward cant from the body, and the exhaust plume rises away from the body as it exits. Mansory positions the decklid spoiler blade above the exhaust plume path, maintaining a 40 mm minimum clearance between the blade underside and the hot-gas trajectory at peak S68 exhaust temperature. This separation ensures that even under sustained hybrid-boost driving — when the S68 twin-turbo system is operating at maximum thermal output — the carbon blade's epoxy matrix does not approach the 140 °C glass-transition temperature threshold of the resin system.

Visually, the rear decklid spoiler provides the defining horizontal line that caps the XM's rear face. The G09's rear is already highly characterised by the vertical rear lamp cluster flanking the decklid, the large BMW badge, and the twin-stack exhausts — the Mansory decklid spoiler adds a carbon horizontal element above the lamp clusters that reads as the aerodynamic counterpart to the roof spoiler, completing the rear-face carbon architecture begun by the diffuser below.

Compatibility & Fitment

Confirmed fitment: BMW XM G09 2023-onwards, base XM and XM Label Red / 50 Jahre M. The blade width of 1,380 mm is verified to clear the rear lamp cluster apertures and the BMW M badge position on the decklid centre line for all G09 production variants. LHD and RHD variants are identical. The mounting stud positions are located in the decklid solid-metal panel section, clear of the decklid inner seal frame. The roof spoiler and rear decklid spoiler can both be fitted simultaneously — they occupy the upper and lower decklid trailing edges respectively, sharing no mounting positions. Heat-resistant lacquer is recommended for XM Label Red variants used in performance driving contexts given the elevated exhaust temperatures associated with the 748 hp output level.

Installation & Reversibility

Installation time is 25–40 minutes. The procedure mirrors the roof spoiler: clean the decklid trailing-edge mounting zone with isopropyl alcohol; position the spoiler foot using the EPDM gasket's pre-scribed alignment marks; mark and drill three 6.5 mm pilot holes through the decklid trailing-edge skin; apply VHB tape to the gasket perimeter; press and torque the three M6 studs from the interior. The drilling step is required for secure high-speed aerodynamic loading — VHB tape alone is insufficient at the blade's aerodynamic chord loading at 130 km/h. Removal: extract the studs, cut the VHB tape, fill and paint the three pilot holes. This represents a definitive though cosmetically restorable modification to the decklid.

Pairing within the Mansory BMW XM programme

The rear decklid spoiler works as the lower element of a natural pairing with the Roof spoiler Mansory for BMW XM above — together they constitute a dual-element rear wing at the XM's roofline and decklid trailing edges. For underbody aero balance, the Rear diffuser with side flaps Mansory for BMW XM provides the lower-body downforce that completes the rear aero couple. This three-part rear package — roof spoiler, decklid spoiler, diffuser with side flaps — represents the maximum rear-aero specification within the Mansory BMW XM programme.

Maintenance & Durability

The rear decklid spoiler faces a unique maintenance challenge: its position directly above the quad-exhaust outlets means the blade underside accumulates exhaust carbon deposits and hydrocarbon film under slow-speed driving conditions. Clean the blade underside at every wash session using a dedicated exhaust-tip cleaning product diluted to 50% strength — the ceramic-loaded trailing-edge trim and the 2.5 mm radius CNC edge are resistant to mild acid-based exhaust cleaners. The blade upper surface should be treated identically to the roof spoiler: SiO₂ sealant after each detail session, pH-neutral pre-wash before contact washing, and no prolonged alkaline dwell. For Label Red owners with the heat-resistant lacquer variant, the exhaust-proximity zone on the blade underside can be treated with a heat-resistant ceramic spray coating for additional thermal barrier protection. Inspect the VHB bond line annually for any lifting at the foot perimeter — the thermal cycling from the exhaust heat below combined with ambient temperature variation above creates a more severe adhesive cycling environment here than for the roof spoiler.

Lead Time & Warranty

Lead time is 2–3 weeks from confirmed order, co-batched with the roof spoiler where both are ordered together (no additional lead time for combined orders). The 12-month warranty covers delamination, void formation, clear-coat crazing, VHB bond failure, and trailing-edge chipping under normal service. The heat-resistant lacquer variant for Label Red has the same warranty term; exhaust-deposit staining or discolouration from improper cleaning is not a covered defect.

FAQ

Q: Can the decklid spoiler be fitted without the roof spoiler?
A: Yes — the rear decklid spoiler is a standalone component. It functions aerodynamically in isolation, generating rear-axle downforce from its negatively-canted blade without requiring the roof spoiler above. The two components are designed to complement each other but are independently specifiable.

Q: Does the exhaust heat from the XM's twin-stack quad-exhaust affect the carbon blade?
A: Mansory engineers a 40 mm minimum clearance between the blade underside and the exhaust plume trajectory at peak S68 output temperature, keeping the blade well below the resin system's 140 °C glass-transition limit. Under normal road driving the exhaust plume rises away from the body rapidly; sustained slow-speed driving in enclosed spaces (tunnels, garages) is the highest heat-exposure scenario and should be avoided for all exterior carbon parts.

Q: Does the spoiler fit the XM with the optional decklid privacy glass extension?
A: The G09 XM decklid trailing-edge mounting positions are consistent across all rear-glass specifications. The Mansory spoiler foot profile is verified against the standard and privacy-glass decklid configurations — no fitment difference exists between the two.

Q: What is the weight of the rear decklid spoiler versus the roof spoiler?
A: The rear decklid spoiler weighs 0.7–1.0 kg, compared with the roof spoiler's 0.9–1.2 kg. The decklid spoiler is marginally lighter because its 1,380 mm blade width is 140 mm shorter than the roof spoiler's 1,520 mm span. Both weights are trivial relative to the XM's ~2,750 kg kerb mass.

Complete the rear carbon architecture of your BMW XM with the Mansory decklid spoiler. Contact our team: WhatsApp +44 7488 818 747 or [email protected].
