Race flaps carbon Mansory for Lamborghini Urus Venatus

Mansory Race Flaps Carbon for Lamborghini Urus Venatus

The Mansory race flaps are the most overtly motorsport-derived element of the Mansory Body Kit for Lamborghini Urus Venatus S. Mounted on either side of the front bumper as a small canard pair, they translate the race-car language of dive-plane aerodynamics onto a 2.2-tonne, 5.11-metre super-SUV. Around the twin-turbocharged 4.0 TFSI V8 — 641 hp on the standard Urus, 666 hp on Urus S and Urus Performante, 8-speed ZF, permanent AWD, rear-wheel steering and adaptive air suspension — the car carries genuine performance credentials. Race flaps are not theatre on this chassis; they tilt the front aero balance, generate vortices that energise the airflow along the flanks, and visually anchor the Y-DRL front mask in a stance that says race-derived without shouting.

Construction & Materials

Race flaps are small, geometry-critical parts. Although the canard pair weighs almost nothing, the leading edge sees direct rock impact at motorway speed and the aerodynamic load on the panel under hard braking is real. Mansory builds them as autoclave-cured prepreg, not vacuum-bag, so the laminate is stress-tolerant and dimensionally exact along the trailing curve.

• Weave — 3K twill carbon fibre prepreg, oriented so the diagonal pattern flows symmetrically into the bumper corners and reads cleanly in low-angle sun.
• Cure — autoclave under heat and pressure; the flaps must hold their canard angle precisely to deliver the intended vortex pattern, and autoclave cure prevents resin-rich pockets that would distort under thermal cycling.
• Wall thickness — approximately 2.0–2.4 mm core laminate with a thicker leading-edge build-up for chip resistance.
• Weight — approximately 1.0–2.0 kg for the pair; the contribution to unsprung or front-axle mass is essentially zero.
• Mounting — re-uses OEM bumper screw bosses where present and adds structural double-sided automotive bonding tape (3M VHB-class) plus dedicated bracketry for the canard surface.
• Hardware — stainless-steel fasteners, OEM-grade adhesive promoter, sealing gaskets at every fastener interface to prevent water intrusion behind the bumper skin.
• Finish — Mansory deep-gloss UV-stable lacquer over the carbon, giving the laminate genuine three-dimensional depth in daylight; matt clear is available as a bespoke option for owners who prefer a satin reading of the weave.
• QC — every set hand-fitted to a master Urus front bumper before despatch; trailing edge geometry verified against the Mansory aero specification.

Design & Visual Function

Canards work by tripping the airflow at the front corners and shedding controlled vortices that re-attach the boundary layer along the flanks. On a super-SUV this produces three measurable benefits: a small but real front-axle downforce contribution that sharpens turn-in, vortex-driven flow steering past the front wheel-arch that improves brake-rotor cooling on track, and a visual cue that anchors the front bumper to the wider Mansory aero programme. The geometry on the Urus race flap is deliberately compact — Mansory is not building a GT3 splitter, it is building a road-legal canard pair that survives kerbs, speed bumps and rock chips while still generating useful pressure differential.

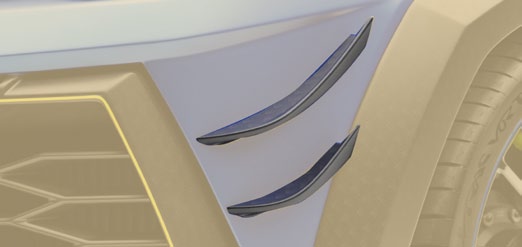

Visually, the canard pair sits below and outboard of the lower air intakes, mirroring the hexagonal Lamborghini DNA in the front mask and giving the bumper a planted, downforce-aware silhouette. Combined with a carbon front bonnet — gen II or gen V — the car reads as a coherent motorsport-derived front end, not a parts-bin retrofit.

Race flaps on the Urus Venatus are a three-way matrix and the choice depends on bumper sensor configuration and which generation of Mansory aero you have specified. The standard race flaps — this part — fit Urus, Urus S and Performante that do not carry the Lamborghini front-assistant radar in the affected zone. The race flaps for cars with front-assistant are the geometrically-cleared variant with the canard surface re-shaped so it does not occlude the front-assist radar field; if your car has the radar option, you must select that version. The EVO race flaps for front lip are a newer-generation design that mounts onto the front lip rather than directly onto the bumper face, intended for the Venatus EVO front-end programme — different mounting plane, different visual line. Choose the standard race flap when the bumper has no radar, you want the classic Venatus front-aero look, and you are not running the EVO front lip.

Compatibility & Fitment

The standard race flaps are compatible with Lamborghini Urus, Urus S and Urus Performante (2018–present). They retrofit across the Urus line — the slug uses the generic Venatus naming, which is normal for the programme. Important fitment caveat: this version is for cars without the optional front-assistant radar in the canard zone. If your Urus carries that radar option, fit the front-assistant variant instead; the standard flap geometry will sit in front of the sensor and degrade radar performance. Adaptive air suspension self-levelling, the rear-wheel steering geometry, the six driving modes (Strada / Sport / Corsa / Sabbia / Terra / Neve) and the OEM parking-sensor array are all retained — the canards add no electronic interface and intercept no OEM signal. The Urus does not have ALA, so there is no ALA aerodynamic interaction to consider on this car.

Installation & Reversibility

Plan 1.5–2.5 hours for the pair on a clean, dry car at room temperature. The bumper area is masked, the OEM mounting points are located, the bonding zones are degreased with isopropyl alcohol and treated with adhesion promoter, and each canard is offered up on dry-fit before final placement to verify symmetry and the canard angle. Trailing edges are verified flush, fasteners torqued to specification, and a 24-hour cure window is observed before high-pressure washing. A body shop or Mansory-trained installer is preferred — the symmetry of the canard pair on a wide bumper is more visible to the eye than most carbon trims, and an angle error of two degrees side-to-side will read as a misalignment. Removal is reversible: the bracket interface and the bonded zone can be cut, cleaned and re-finished by a competent shop if you later switch to the EVO front-lip race flaps or revert to OEM.

Pairing within the Mansory Urus Venatus programme

The race-flap matrix needs to be specified in full so owners can compare. The two siblings inside the matrix are the Race Flaps for Cars with Front-Assistant — the radar-cleared variant for Urus optioned with front-assist — and the EVO Race Flaps for Front Lip, the newer Venatus EVO geometry that mounts on the front lip rather than the bumper face. For a coherent front-end pair, the natural companion is the Front Bonnet II Carbon, which closes the front-end carbon programme above the canards.

Maintenance & Durability

The leading edge of a canard panel sits at exactly the height that catches gravel kicked up by the car ahead. Even on a road-driven Urus, the front race flaps will see rock-chip exposure on every motorway run, and an unprotected lacquered carbon edge will eventually whiten where the clear coat is fractured. Specify paint protection film over the leading edge as part of the install — it is a five-year solution that does not affect appearance and prevents chip damage from reaching the laminate. Wash with pH-neutral shampoo only; avoid alkaline traffic-film removers, ammonia and abrasive sponges, all of which haze automotive UV-stable lacquer. Ceramic coating extends the service life of the gloss but is not a substitute for PPF on the impact zone. If a panel does take a deep chip, the laminate itself can be repaired and re-lacquered by a competent carbon-fibre specialist; if a single canard is damaged beyond repair, Mansory will produce a replacement that pairs visually with the surviving original.

Lead Time & Warranty

Lead time is typically 4–8 weeks from order — Mansory builds bespoke and the carbon programme is laid up, cured and finished against your order rather than pulled from a shelf. Each set carries a 12-month warranty against manufacturing defects in laminate, hardware and finish. Detailed installation guidance is supplied with the parts; if you need installer references, we can introduce you to body shops familiar with the Mansory programme.

FAQ

Q: Is the downforce real or just visual?
A: It is real but small. The canards generate genuine vortices and contribute a measurable front-axle downforce effect under hard cornering and braking; the magnitude is appropriate to a road-legal canard on a 2.2-tonne SUV, not to a GT3 dive plane. Visually, the package reads as motorsport-derived and that is also part of the value.

Q: Will the standard flap clear my front-assistant radar?
A: Only if your car does not have the Lamborghini front-assistant option in that zone. If it does, you need the front-assistant variant — the standard flap will sit in the radar field and degrade detection. Check your bumper for the radar emitter aperture before ordering; we can confirm by VIN if you message us.

Q: What is the difference between standard race flaps and the EVO race flaps for front lip?
A: The standard race flaps mount on the bumper face, in the original Venatus geometry. The EVO race flaps are a newer design that mounts on the front lip with revised canard geometry — they are intended for the Venatus EVO front-end and produce a different visual line. They are not interchangeable; you choose by which front-end programme you are running.

Q: Do the flaps fit Urus Performante as well as Urus S?
A: Yes — Urus, Urus S and Urus Performante share the bumper substructure that the canards reference, subject to the front-assistant radar caveat above.

Q: Can I repair a chipped flap rather than replace it?
A: Yes. Edge chips and small impact damage in lacquered carbon are repairable by a carbon-fibre specialist — laminate fill, sand, re-lacquer. Replacement is reserved for structural damage to the canard surface or large delamination.

Pair these race flaps with a carbon front bonnet to complete the front-end carbon statement, and decide between the standard, front-assistant and EVO variants based on your radar option and front-lip programme. WhatsApp +44 7488 818 747 or [email protected] — we will confirm fitment, lead time and bespoke finish options.
