Mirror housing Mansory for Lamborghini Urus Venatus

Mansory Mirror Housing for Lamborghini Urus Venatus — Classical Original Cap

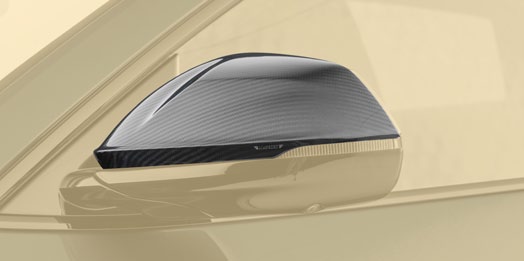

The Mansory carbon mirror housing is the original, first-generation Venatus mirror cap — the calmer of the two cap geometries Mansory has issued for the Lamborghini Urus / Urus S / Urus Performante. Specified as part of the wider Mansory Body Kit for Lamborghini Urus Venatus S programme, this classical housing keeps the side aspect of the super-SUV restrained and faithful to the early Venatus design language, while OEM Lamborghini fold, heating, blind-spot radar and the kerb-view camera continue to operate exactly as the factory intended. It is the cap most owners pick when their Urus carries first-generation Venatus front and rear aero, where geometry harmony matters more than visual escalation.

Construction & Materials

The original Venatus mirror cap is a complete shell replacement, not a stick-on overlay. Mansory builds the housing as a single-piece carbon part that swaps for the painted OEM cap, so the weave runs continuously across the upper crown, around the leading edge and down to the trailing flick without seams, paint-to-carbon transitions or adhesive lines. Cure is autoclave prepreg with vacuum consolidation, which gives the trim the same finish density Mansory uses on its lacquered exterior panels.

• Layup: 3K twill carbon prepreg, autoclave-cured for void-free density and dimensional repeatability between left and right caps
• Construction: full housing replacement (not an overlay), bonded to the OEM electronics carrier so glass, motor and heater stay in place
• Wall thickness ≈ 1.6–1.9 mm; pair weight ≈ 0.7 kg, marginally lighter than the painted OEM caps
• Finish: Mansory deep-gloss lacquer with UV-stable clear over visible 3K twill; primed and body-colour finishes available on request
• Hardware: factory clip and torx fixings, OEM gasket re-used; no adhesive promoter needed on the carrier
• Electronics: OEM fold motor, heater element, blind-spot radar antenna and kerb-view camera retained without modification
• Tolerance: cap-to-door-skin gap matches OEM within ±0.5 mm across both sides after Mansory's QA fitment check
• Surface: weave aligned symmetrically about the cap centreline so the two caps mirror one another optically across the car's longitudinal axis

Design & Visual Function

The original housing is the more restrained of the two Mansory mirror caps. Its shoulder is slightly rounder, the trailing flick a touch shorter, and the transition from upper crown to lower base is softer than on the later Mirror Housing II. On a first-generation Venatus or a pre-facelift Urus carrying the original Mansory front bonnet, race flaps and original fender emblems, this classical geometry holds the side profile in proportion and lets the eye travel cleanly from front fender, along the door skin, to the rear haunch without snagging on an aggressive cap silhouette.

The trade-off against the newer Mirror Housing II is genuine and worth thinking through before committing. Pick the original cap when the rest of the build is first-generation Venatus, when the car is intended to read as a coachbuilt grand-tourer SUV rather than a track-flavoured one, or when an existing Urus with original Mansory parts is being completed and visual harmony with what is already installed matters more than escalation. Pick Mirror Housing II when the car is post-2022 Urus S or Urus Performante carrying EVO race flaps, performance-wing-EVO or generation-V bonnet, where the more pronounced cap shoulder visually resolves into the harder body language of those parts.

Optically, the lacquered 3K twill catches light along the cap crown, draws a quiet diagonal across the door window and ties into other lacquered carbon on the car — bonnet vents, c-pillar panel, roof cover — without competing with them. Owners who specify the original housing alongside brushed-metal Lamborghini accents on the door cards report the cap reads as factory-Mansory rather than aftermarket, which is the intended outcome.

Compatibility & Fitment

The cap fits Lamborghini Urus, Urus S and Urus Performante (2018–present). Slug naming uses the generic venatus form because the housing retrofits across the full Urus carbon programme — first-generation Venatus, Venatus S facelift and Venatus EVO trim levels share the OEM mirror carrier and the cap interfaces with that carrier identically. OEM Lamborghini fold-on-lock, heating, auto-dimming on the driver's side where fitted, blind-spot indicator illumination, kerb-view camera and the surround-view stitching feed all continue to function. The cap does not interfere with adaptive air-suspension self-levelling, rear-wheel steering geometry or any of the six driving modes (Strada, Sport, Corsa, Sabbia, Terra, Neve). The Urus does not carry ALA, so there is no movable-aero constraint anywhere on the car. Mirror calibration is unchanged because the OEM electronics are reused without re-aim.

Installation & Reversibility

Budget three to four hours for a careful pair-fit. The mirror is partially disassembled rather than removed from the car: the painted OEM cap is unclipped from the electronics carrier, the carrier remains in place with the glass, motor, heater and radar antenna untouched, and the new carbon shell is offered up, aligned to the door-skin gap, then secured with the original torx fixings. No wiring is cut, no connectors are unplugged, no adhesive is required beyond the OEM gasket. Because nothing is glued and nothing is trimmed, the swap is fully reversible — refitting the painted OEM caps is a straightforward thirty-minute job per side. DIY is realistic for an experienced owner with plastic trim tools, although a Mansory-trained installer or a Lamborghini-certified body shop will guarantee the door-skin gap match and the symmetrical weave alignment that distinguishes a clean fit from a merely functional one.

Pairing within the Mansory Urus Venatus programme

The most important sibling decision is the trade-off duo against the later cap. Read Mirror Housing II Mansory for Lamborghini Urus Venatus alongside this card before committing — original geometry suits first-generation Venatus builds, II suits the post-facelift Urus S and Performante with EVO-spec aero. To complete the side and front-quarter visual reading, owners frequently pair the classical cap with the original-style Front Fenders Emblem with Logo Mansory for Lamborghini Urus Venatus, which keeps the entire side of the car on the same first-generation Mansory branding language. Owners moving toward a fuller side treatment often add the C-Pillar Panel Mansory for Lamborghini Urus Venatus to extend the lacquered weave from cap, through window line, into the rear quarter.

Maintenance & Durability

The lacquered carbon shell behaves like any other Mansory exterior carbon part. Hand-wash with pH-neutral shampoo, two-bucket method, soft microfibre — no alkaline degreasers, no ammonia-based glass cleaners drifting onto the lacquer, no abrasive sponges or stiff brushes around the cap edges where the clear is thinnest. A high-grade ceramic coating extends UV resistance and protects against bug acid and tree sap; carnauba is acceptable but needs more frequent re-application on a daily-driven Urus. The cap sits in a relatively low-impact zone — out of the direct rock-chip cone of the front bonnet — so paint protection film over the cap is optional rather than essential, although owners who routinely take their Urus on motorways or onto loose surfaces in Sabbia or Terra mode often add a small leading-edge PPF strip. If a cap chips, repair is straightforward: Mansory-trained refinishers can re-lacquer or, in the case of structural damage, supply a single replacement shell rather than forcing a pair purchase.

Lead Time & Warranty

Lead time runs four to eight weeks from order confirmation, in line with Mansory's bespoke production cadence. Each cap leaves the workshop with documented weave alignment and a paired serial set so the left and right shells are matched at manufacture. Warranty is twelve months against manufacturing defects covering delamination, lacquer failure under normal use and dimensional non-conformance.

FAQ

Q: How does the classical cap differ visually from Mirror Housing II?
A: The original has a slightly rounder shoulder, a shorter trailing flick and a softer crown-to-base transition. II is more pronounced and more aggressive. Original suits first-generation Venatus builds; II suits post-2022 Urus S and Performante with EVO aero.

Q: Will it fit my Urus Performante?
A: Yes. The cap fits Urus, Urus S and Urus Performante from 2018 onward. The OEM mirror carrier is shared across the family and the cap interfaces with that carrier without modification.

Q: How much weight does the pair save?
A: Roughly 150–250 g across both caps versus the painted OEM units. The headline benefit is finish quality and side-profile harmony, not mass reduction.

Q: Is the blind-spot indicator and kerb camera unaffected?
A: Correct. The cap is a shell over the unmodified electronics carrier, so blind-spot radar, indicator illumination, kerb-view camera and surround-view stitching all continue to operate without recalibration.

Q: What if the cap is chipped or scuffed in service?
A: Mansory-trained refinishers can re-lacquer minor damage. Structural damage is repaired by replacing the affected shell only — the pair does not need to be re-ordered.

Pair the original cap with first-generation Venatus aero for visual harmony, or step up to Mirror Housing II for facelift and Performante builds. To confirm which geometry suits your Urus and to lock production into the next Mansory build slot, contact WhatsApp +44 7488 818 747 or [email protected].
