Mansory Carbon Fiber Body kit set for Mercedes G-class W463 Gronos

MANSORY Gronos for the Mercedes G-Class W463 Pre-Facelift — the original wide-body programme

Before the W463A G63 became the default badge in every Gulf valet line-up, the pre-facelift W463 G-Class was the chassis on which Mansory invented the Gronos look. The bodyshell Graz pressed continuously between 1979 and the 2018 generational reset reached commercial peak in the 2008-2018 window: a square-cornered four-by-four with vacuum-sealed door slams, factory G63 AMG biturbo V8 trims, and a residual-value curve that almost no other vehicle in its class can match. This page covers the founding Gronos kit drawn against that pre-facelift bodyshell.

Three generations of Gronos run in parallel inside Hodoor's catalogue. The version on this page is the 2008-2018 pre-facelift original. The mid-life evolution lives on the W463A Gronos page; the newest panel set sits on the W465 Gronos page. None of the three share a fender or a bumper SKU. Sister W463 alternatives for less aggressive overlays: the W463 Soft Kit, the G-Couture for early-build cars, and the rare Black Desert programme for the 4x4² portal-axle car.

Donor scope — what the pre-facelift W463 G-Class actually was

The pre-facelift W463 ran continuously from 1990 to 2018, but the body geometry the Mansory Gronos panels are dimensioned against settled into its mature shape during the 2008 mid-cycle revision: revised dashboard, COMAND infotainment, redesigned twin-circular headlights, and the introduction of the M157 V8 biturbo for the 2012 model-year G63 AMG. Wheelbase: 2 850 mm (long-wheelbase five-door, the dominant Gronos donor), with the three-door SWB at 2 400 mm available as a rare commission donor. Length: 4 662 mm on the LWB. Kerb weight: roughly 2 510 kg on a G63 AMG, 2 520 kg on the G65 V12 (rare). Drivetrain: ladder frame with three locking differentials, low-range transfer case, full-time 4MATIC. The car has body-on-frame construction throughout, which is why Mansory's bonded fender extensions on this generation use a different mounting strategy from the unibody Mercedes SUVs in the rest of the Gronos catalogue — the W463 flares clamp through the steel ladder rail rather than into a stamped wheel-arch lip.

Engines covered by the original Gronos panel set: G63 AMG on the M157 DE 55 AL twin-turbo 5.5 V8 (544 hp / 760 Nm, AMG SPEEDSHIFT PLUS 7G-TRONIC, 0-100 km/h in 5.4 seconds — the dominant donor); G65 AMG on the M279 6.0 twin-turbo V12 (612 hp / 1 000 Nm, low volume); G55 AMG Kompressor pre-2012 with the M113 K supercharged 5.4 V8; G500 / G550 on M273 NA or M177 biturbo per market; and the European-favourite G350 BlueTec / G350d with the OM642 3.0 V6 turbodiesel.

Panel schedule — what ships in the original Gronos crate

The 2008-2018 W463 Gronos is a wide-arch carbon programme rather than an overlay. The arch line extends approximately 50 mm per side at the front axle and 60 mm at the rear, dimensioned to clear a 22"/23" forged stagger on the 5x130 PCD. Panels arrive in autoclave-cured pre-preg twill weave with hidden FRP mounting flanges; visible weave is the default finish, with paint-to-OEM-colour on commission for owners running a single-tone donor.

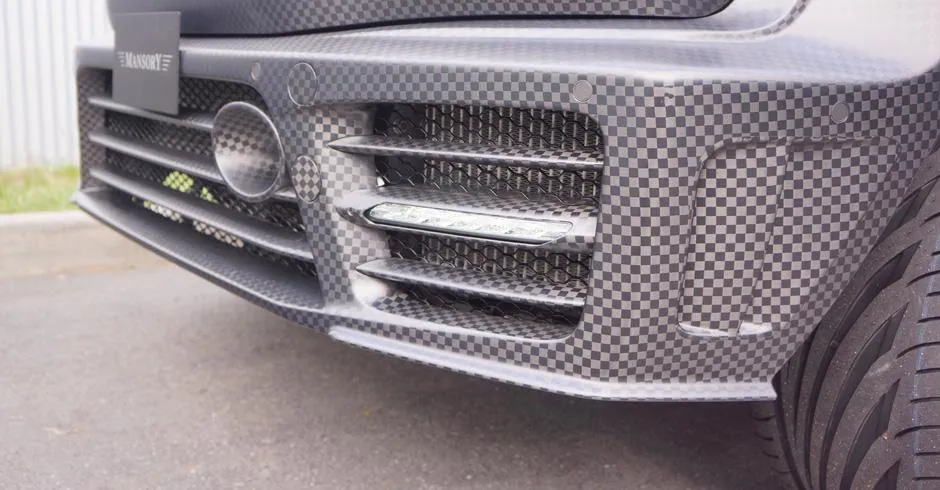

• Front bumper (replacement) with redrawn lower intake, integrated air dam and outboard lamp surrounds; preserves the OEM AMG headlamp washers and the parking sensors
• Front wider wings (fenders), bonded extensions matched to the W463 hinge line
• Vented carbon bonnet with twin functional heat outlets above the M157 intake plenum (G63 spec) or smooth-bonnet variant for diesel G350d donors

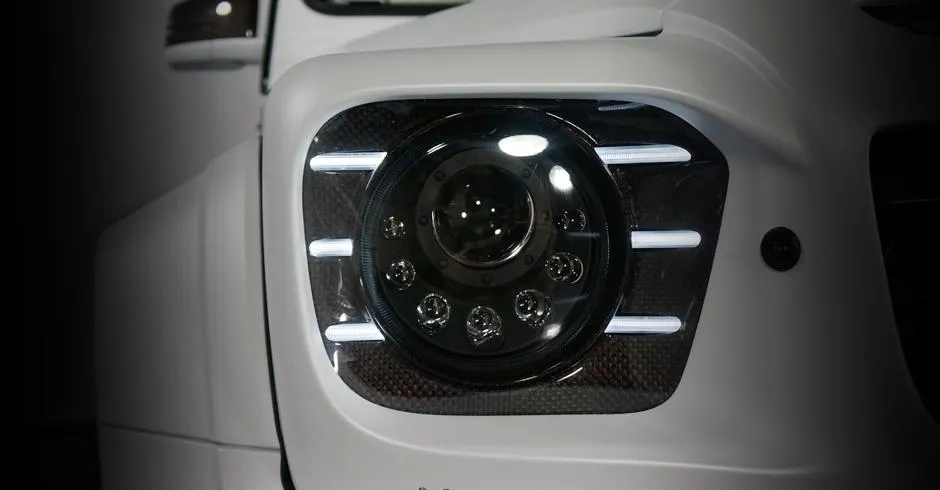

• Headlamp surround caps in carbon, framing the round 2008-revision lamp clusters
• Wider front and rear doors — bonded carbon overlay panels, hand-fitted to keep OEM door cards and window mechanisms intact
• Carbon door handles (catalogue option, not standard on the original Gronos schedule)
• Side step replacement — longer carbon running boards dimensioned to the wider arch line
• Rear arch extensions bonded to the rear-quarter pressing
• Rear apron / lower bumper insert with quad oval exhaust bezels (G63 SKU) or twin-tip diesel cutout (G350d SKU)
• Custom spare-wheel cover in carbon with hand-painted Gronos signature plate
• D-pillar covers in visible weave
• Rear roof spoiler over the rear screen

Cabin work is commissioned separately. The 2008-2018 W463 dashboard was the COMAND-NTG3 generation, not the W463A twin-screen architecture, so carbon-trim plates and leather retrim are drawn against a different interior and quoted as per-VIN bespoke rather than catalogue SKU.

M157 5.5 V8 biturbo — what the Mansory powertrain commission adds

The M157 in pre-facelift G63 AMG trim leaves Affalterbach at 544 hp / 760 Nm. Mansory's stage-1 calibration plus the workshop's stainless valved sport-exhaust lift it to roughly 700 hp / 950 Nm; the calibration is reversible. The M279 V12 in the G65 AMG accepts only a conservative tune (~50 hp peak gain) because the engine is already at the upper end of its exhaust-manifold thermal envelope. Diesel G350d donors do not receive a tune in the Gronos catalogue.

Wheels — 22" or 23" forged on 5x130 PCD

Pre-facelift W463 OEM AMG wheels run 18"-19". The Mansory Gronos catalogue is built around 22" or 23" forged on the W463 5x130 PCD (84.1 mm centre bore). Tyre fitment for 22": 305/40 R22 across both axles. For 23": 295/40 R23, with an optional 305/35 R23 rear shoulder for the deepest fender-flare specification. Patterns: YN.5 double-Y, FD.16 dual-spoke concave, M.7 classic multi-spoke, with the R.7 retro multi-spoke as the period-correct option. Finishes: gloss black, matte black, brushed gun-metal with diamond-cut accents, two-tone polished, paint-to-sample. The set clears the OEM AMG six-piston front brake; factory ceramic upgrades clear without spacers. Full forged programme: Hodoor's forged wheels collection. Load ratings against the W463's worst-case kerb weight of 2 545 kg are documented and supplied on shipping.

Geography — where the original Gronos book actually lives

The 2008-2018 W463 Gronos commission book is a different geographic shape from the W463A and the W465. Pre-facelift W463 G-Class cars are now between eight and eighteen years old; the buyer profile has shifted toward enthusiast collectors and second-owner long-hold households rather than first-delivery showroom buyers. The shipping corridors below reflect that:

• UAE remains the deepest single market — Dubai garages routinely keep a pre-facelift G63 alongside a current W465, and the original Gronos retrofit is commissioned as a heritage build to honour the older car. Most UAE commissions specify the visible weave and the 23" forged set rather than paint-to-body.
• Saudi Arabia follows a similar profile with a higher rate of paint-to-body finish — Riyadh and Jeddah owners often run the carbon panels colour-matched to a sand or desert-tan body code rather than left in raw weave.
• Qatar commissions the original Gronos in low volume but at high specification — full carbon panel set, 23" forged set, M157 stage-1 tune and the stainless sport exhaust as a single integrated commission.
• Tsar programme serves the CIS lane through closed-network freight; the pre-facelift W463 retains a strong following among Russian and Kazakh enthusiast collectors, and the original Gronos remains the preferred Mansory specification because it respects the car's period geometry.
• Turkey — Istanbul carries an unusually concentrated G63 W463 enthusiast cluster; the Gronos retrofit is commissioned alongside paint-protection-film respray packages.
• Austria — the country adjacent to Graz where the donor was built; Austrian commissions skew toward the diesel G350d donor with the smooth-bonnet variant and the 22" forged wheel.

Install & lead time

The original Gronos is a body-shop build. A workshop with documented W463 experience needs 10 to 14 working days for the full panel install including paint-prep on whichever finishes are colour-matched. The wider doors require careful alignment against the OEM door hinges; a dedicated alignment fixture is supplied with the kit on commission. M157 ECU calibration plus exhaust install: 3-5 days on top of the body-shop schedule. 22" or 23" forged wheel set: 4-5 weeks from confirmed order. Total commission lead time including carbon manufacture and freight: 10 to 12 weeks from deposit. Orders open via [email protected] with the donor VIN, the model year, the AMG / non-AMG trim level, the OEM Mercedes paint code, and the destination country including any armoured-glass-package note that affects kerb weight. WhatsApp +44 7488 818747 for the fastest landed-quote channel into the Gulf or CIS corridors.

FAQ

Will the original Gronos panel set fit a 2018+ W463A G-Class?
No. The W463A is a generational reset — new bodyshell dimensions, redesigned front clip, larger glass area, repositioned wheel arches. The original Gronos panels do not align with the W463A bodyshell. W463A commissions route to the W463A Gronos page; W465 commissions route to the W465 Gronos page.

What is the earliest model year the original Gronos retrofits onto?
The bumper geometry settled into a single shape from the 2008 mid-cycle revision onwards. Earlier W463 cars (1990-2007) ran an earlier headlamp shape; for those donors the correct programme is the G-Couture rather than the Gronos.

Will the wider doors keep the OEM W463 vacuum door-slam?
Yes. The carbon door overlay panels bond onto the OEM door skin without disturbing the vacuum-sealing rubber, the central locking actuator or the window-regulator mechanism. The signature pneumatic slam every W463 collector recognises is preserved.

Carbon vs FRP — which is right for a daily-driver pre-facelift W463?
Visible-weave carbon is the original Gronos signature and the format most photo-archive Gronos cars wear. FRP is the right answer for owners committing every panel to a body-colour respray anyway — the result reads identical once painted, the cost is lower, and rock-strike resistance on rough European roads is marginally better.

Will the kit fit the G500 4x4² portal-axle variant?
Partially. Front bumper, bonnet and rear apron transfer cleanly. The bonded fender extensions do not align with the 4x4²'s portal-axle wheel-arch geometry — the 4x4² has its own dedicated programme on the Black Desert page.
