Front bonnet Mansory Carbon for Ferrari F8 Tributo

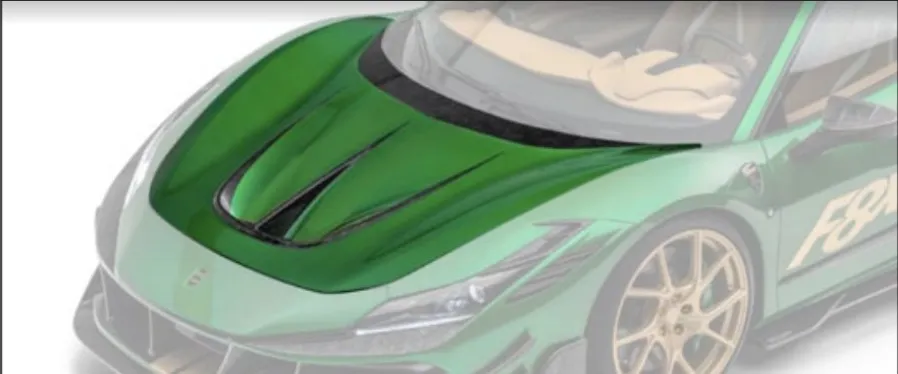

Mansory Carbon Front Bonnet (S-Duct Exit-Vent) for Ferrari F8 Tributo

The front bonnet sits at the visual heart of the F8 Tributo's nose because the F8's most copied piece of engineering — the S-Duct — terminates exactly here. Air enters through the front-bumper centre intake, travels up through internal ducting, then escapes through an aperture cut into the bonnet, generating downforce while shedding drag. Mansory's carbon front bonnet replaces the OEM aluminium frunk lid with a fully laid-up prepreg panel that retains that S-Duct exit vent in OEM geometry, with bonded flow surfaces shaped to the same exit angle Maranello specified for the production car. It is the bonnet variant that owners commission as part of the broader programme — see the parent Mansory Carbon Fiber Body kit set for Ferrari F8 Tributo — when the front-kit and trunk-cover are already on the build sheet and the nose needs to read as a single carbon volume rather than a painted-aluminium lid set against a carbon bumper. On the Tributo Coupé and the F8 Spider alike, this is the panel that closes the cosmetic gap between the front-kit's fascia and the windscreen base.

Construction & Materials

The front bonnet is a structural-class panel — it has to flex through gas-strut openings thousands of times, survive door-handle slams when owners close it firmly, and hold its shape across tar-summer and salt-winter use. Mansory therefore lays it up as a multi-layer prepreg sandwich, not a single-skin overlay, and cures it in autoclave at controlled pressure and temperature so the resin matrix hits full crosslink density before demoulding.

• Outer skin: 3K twill 2x2 carbon, 200 gsm prepreg, weave aligned to the centreline so the S-Duct aperture frames the weave symmetrically left/right
• Core: aerospace-grade aluminium honeycomb at the central panel zone, with solid carbon at the hinge mounts, latch box and gas-strut anchor points
• Cure: autoclave at ~6 bar / ~120 °C, 90-minute dwell, post-cure to relieve internal stresses
• Wall thickness: 1.6–2.2 mm at flow surfaces, ~6 mm at honeycomb sandwich zones, locally thicker at hinge bosses
• Weight: roughly 4.8–5.4 kg, against a stamped OEM aluminium lid in the 9–10 kg region — the saving lives over the front axle
• Hardware: OEM hinge spacing, OEM latch geometry, OEM gas-strut mounts; bushings and crush sleeves transferred from the donor lid
• Finish options: deep-gloss UV-stable two-pack lacquer, satin matte clear, or exposed weave with high-build UV clear (each spec'd at order)
• S-Duct exit aperture finished with a bonded carbon collar — no raw composite edge sits in the airflow path

Design & Visual Function

The S-Duct is not decorative. Air pulled in low at the front-bumper centre is accelerated through a venturi, ducted upward behind the bumper skin, and exhausted through the bonnet aperture in a direction that adds vertical load and reduces the under-nose stagnation pressure — the same mechanism Ferrari Challenge cars exploit at the front splitter. Mansory's bonnet preserves the entire exit aperture, the duct collar, and the surface curvature that meters exit velocity. Replacing the lid with carbon does not alter the duct path; it changes only the panel mass and the visual finish.

Visually, the bonnet is the panel that decides whether the F8's nose reads as factory-with-additions or as a coherent Mansory build. Twill weave aligned along the centreline runs into the S-Duct aperture without breaking, and the lacquered finish carries the same depth as the front-kit's fascia. Owners who order this part almost always order it together with the front-kit so the bumper-to-bonnet shutline disappears into a single carbon plane. With the trunk-cover panel on a Spider build, the carbon language continues from front fender to windscreen base, then resumes behind the cabin at the engine-bay glass — a deliberately motorsport-derived stance.

Weight reduction over the OEM aluminium lid lowers polar moment at the very front of the chassis, marginally sharpening turn-in. The figure is not transformative on its own, but compounded with carbon front-fender intakes, race-flaps and a carbon front-kit, it becomes a measurable shift in how the F154 V8 BiTurbo's torque step feels through corner exit — the nose follows steering inputs with less overrun.

Compatibility & Fitment

Designed exclusively for the Ferrari F8 Tributo Coupé and F8 Spider (2019–2024). The panel is moulded from F8-specific tooling and will not fit the 488 GTB or 488 Pista — the predecessor 488 has different bonnet geometry, different S-Duct routing, and a shorter latch span. It will likewise not fit the 296 GTB, which is a hybrid V6 platform with a completely different front structure and no S-Duct. The bonnet retains OEM hinge points, OEM gas-strut mounts, OEM washer-jet apertures, OEM latch box, and the S-Duct exit aperture geometry. Frunk underside trim, weatherstrip channel and hinge-cover clips transfer from the donor lid.

Installation & Reversibility

Allow 2–4 hours for installation by a Ferrari-certified body shop or a Mansory-trained installer. Workflow: support the bonnet on a padded stand, transfer hinges, latch, gas struts and weatherstrip, dry-fit and measure shutlines at the headlamps and windscreen scuttle, adjust hinge shims for parallel gap, then bond the underside heat-shield (if specified) and torque hinges to OEM spec. Painted finishes ship cured but should sit 24 h after installation before polish; raw-weave finishes need only a final isopropyl wipe. Reversibility is total — the OEM lid can be refitted at any time, since no chassis modification is required. Owners considering Ferrari dealer service should be aware that non-OEM body panels can affect the dealer relationship around bodywork claims; mechanical and powertrain warranty coverage is separate.

Pairing within the Mansory F8 programme

The front bonnet is the central piece of the F8's front-end carbon set. It pairs naturally with the front-kit so the bumper fascia and the bonnet read as one unbroken carbon plane along the S-Duct corridor, and with the trunk-cover on Spider builds where the closed-lid variant of the frunk panel fits cars without the integrated exit-vent specification — the two trunk panels are alternative build paths, this front-bonnet being the variant with S-Duct exit aperture and the trunk-cover the simpler closed surface. For the full motorsport-adjacent stance, add race-flaps for the front bumper at the bumper's lower corners.

Maintenance & Durability

Lacquered carbon needs the same care discipline as a high-gloss painted panel, plus an awareness that weave and clear are a sandwich rather than a homogeneous layer. Clean with pH-neutral shampoo and clean microfibre, never alkaline traffic-film removers or ammonia-based glass cleaners on the lacquer; both attack two-pack clears over time. A ceramic coating is the most appropriate sacrificial layer for this part, given that the bonnet sits forward of the windscreen and accumulates tar-fleck, bug strike and gravel pickup at motorway speed. Carnauba wax is acceptable but offers shorter protection intervals.

F8 Tributos see mixed road and track use, and the front bonnet is the panel that catches stone strikes thrown up from the splitter at speed. PPF over the leading 30 cm — wrapping around the headlamp upper edge into the S-Duct aperture frame — extends the lacquer life enormously and is reversible. If a chip does penetrate the lacquer into the weave, treat the area within a week to keep moisture out of the laminate; Mansory authorises spot lacquer repair, and full panel re-lacquer is possible as a long-term refurbishment path. Carbon-ceramic brake dust thrown up at high front-axle deceleration is hot and abrasive — annual close inspection of the bonnet leading edge and the headlamp surrounds is sensible. The S-Duct exit aperture itself is self-cleaning at speed but should be visually checked at every service, as debris occasionally lodges at the duct collar.

Lead Time & Warranty

Lead time is 4–8 weeks from order confirmation, reflecting Mansory's bespoke prepreg layup and autoclave cycle. Each bonnet is matched to the requested finish at order — twill direction, lacquer build, optional satin clear or visible-weave specification. A 12-month warranty covers manufacturing defects in laminate, hardware bonding, and finish under normal road use; track-use is also covered when the panel is fitted to OEM spec.

FAQ

Q: Does this bonnet preserve the S-Duct exit vent?
A: Yes. The exit aperture is fully integrated and shaped to OEM exit angle. The duct path behind the bumper is unchanged.

Q: How is this different from the trunk-cover?
A: This panel is the front-frunk lid variant with the integrated S-Duct exit aperture. The trunk-cover is offered as a simpler closed-lid surface for builds that do not require the visible exit vent. For most performance-oriented Tributo specs, this front-bonnet is the correct choice.

Q: Does it fit the 488 GTB or the 296 GTB?
A: No. The bonnet is moulded only for the F8 Tributo Coupé and F8 Spider (2019–2024). The 488 has different geometry; the 296 GTB is a hybrid V6 with a different front structure and no S-Duct.

Q: Coupé vs Spider — same panel?
A: Yes. The front bonnet is shared between the Tributo Coupé and the Spider — both cars use the same forward structure, including the S-Duct routing and lid geometry.

Q: How much weight does it save over the OEM lid?
A: Approximately 4–5 kg, depending on finish spec and whether honeycomb is upgraded. The saving sits forward of the front axle, which has a measurable effect on polar moment.

Q: Are the OEM gas struts reused?
A: Yes. Hinge points, gas-strut mounts and latch geometry are OEM-matched. The original struts transfer over with no modification.

Q: Will it interfere with the front-kit?
A: No. The front-kit and the front-bonnet are designed as a matched pair. The shutline between them holds OEM tolerance once hinge shims are set during installation.

Pair the carbon front bonnet with the front-kit and the race-flaps for a fully resolved Mansory F8 nose. To configure finish, schedule a slot or check current lead time, message WhatsApp +44 7488 818 747 or write to [email protected].
