Extended shift paddles Mansory for Mercedes G-class G500 / AMG G63 W463A

Extended shift paddles Mansory for Mercedes G-class G500 / AMG G63 W463A

The Mansory extended shift paddles are a small but addictive upgrade inside the Mercedes-Benz G-class W463A cockpit, sitting on the back of the OEM 9G-Tronic or AMG SpeedShift MCT shift levers and bringing manual gear control roughly 25 mm closer to the driver's fingertips. They are part of the wider Mansory cabin programme that follows the exterior Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 theme, finished in the same 6061-T6 aluminium and 3K twill carbon-laminate vocabulary as the steering hardware. Owners specify them because the OEM stubby paddles on a stock G63 force a small thumb-and-finger reach off the rim during fast cornering or low-speed off-road crawling — the extensions turn that into a true fingertip shift, with no electrical change, no diagnostics flag, no warranty alarm.

Construction & Materials

Each paddle is a two-piece sandwich. The structural body is a CNC-milled billet of 6061-T6 aluminium — the same alloy spec used in aerospace bracketry — chosen because it machines to a sharp 0.4 mm wall radius without chatter, anodises evenly, and absorbs the small thermal cycling between a sun-soaked cabin and a cold pre-dawn start without dimensional drift. The customer-facing curved face is a 1.2 mm 3K twill carbon-fibre laminate, vacuum-bonded to the alloy core with a structural epoxy and clear-lacquered. The whole shape is shaved to a 28-gram weight per paddle so the OEM column behind the wheel never sees added rotational inertia.

• Weave: 3K twill carbon-fibre face plate (200 g/m² fabric)
• Cure: vacuum-bag cure on the laminate, structural-epoxy bond to the alloy core
• Core: 6061-T6 billet aluminium, CNC-milled to 1.8–2.4 mm wall
• Weight: ~30 g per paddle (the pair adds ~60 g total to the steering column)
• Mounting: 3M VHB 5952 acrylic foam tape, factory-applied, clip-on snap-fit over the OEM paddle nub
• Finish: black anodised alloy edge with clear-lacquered carbon face (natural-anodised silver edge optional)
• Hardware: zero — no screws, no fasteners, no electrical loom interference
• Reach gain: ~25 mm extension toward the driver, ~12 mm wider blade

Design & Visual Function

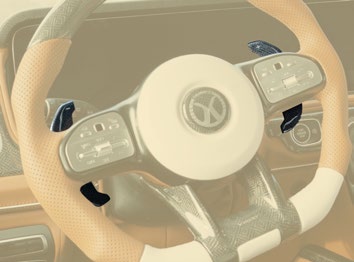

This is a tactile part first and a visual part second. The OEM W463A paddles sit roughly behind the 3- and 9-o'clock spokes of the steering wheel and demand a deliberate finger reach: with the palms relaxed on a 14-and-10 grip your fingertips actually arrive about 18–22 mm short of the OEM blade. Mansory closed that gap. The extension blade arcs outward and slightly upward following the natural curl of the index and middle finger, then flares into a flat carbon-faced pad shaped like a stretched teardrop. Pull the right paddle for an upshift, push the left for a downshift — exactly as the OEM logic dictates, because nothing electrical changes; you are simply pressing the same OEM paddle through a longer, lighter lever.

Visually the paddles read as black floating crescents behind the wheel rim, with the 3K twill face catching ambient light from the sunroof or door panels in long diagonal strips. They look intentional rather than aftermarket — the radius of the outer edge mirrors the radius of the lower steering-wheel spoke, so when the wheel is straight the eye reads paddle and spoke as one continuous carbon-and-alloy curve. That is the Mansory signature: every cabin part is geometrically tied to the part next to it.

For a customer chasing a pure motorsport vibe the natural-anodised silver edge variant exposes the milled aluminium grain and reads almost like a Pagani or AMG GT-Black-Series detail. For the more common all-black cabin spec the standard black-anodised edge disappears into the column shroud and lets the 3K twill do all the talking.

Compatibility & Fitment

Designed for the Mercedes-Benz G-class W463A generation — the 4th-gen platform launched in 2018 (Mercedes internal model code W463A, sometimes called "new G"). Fits G500, G550, G400d, G350d, and AMG G63 (M177 4.0 V8 biturbo), all with the OEM 9G-Tronic or AMG SpeedShift MCT 9G column-mounted paddle hardware. Both LHD and RHD steering columns are supported because the paddles clip individually onto the existing OEM nub and do not care which side the column is on. The pre-2018 W463 ("old box" G-Wagen, 1979–2017) is not compatible — its steering column has either no paddles at all or a different paddle profile. The W463A Gronos and the upcoming W465 use a different paddle moulding and require their own kits.

Installation & Reversibility

Installation is the easiest job in the entire Mansory catalogue. There are no tools, no trim removal, no electrical disconnects. With the engine off and the column-stalk shroud untouched, you peel the red liner off the 3M VHB tape on the back of each extension, align the lower lip of the extension over the lower lip of the OEM paddle, and press firmly for 30 seconds per paddle. Total elapsed time: three to four minutes for the pair. Curing the VHB to full bond strength takes 24 hours at cabin temperature — drivers are advised to do the install in the evening, leave the car parked overnight, and use the paddles normally the next morning. Reversibility is full: warm the paddle gently with a hairdryer for 60 seconds, slide a thin nylon trim wedge under the lower edge, and the extension lifts off cleanly. Residual VHB cleans up with isopropyl alcohol on a microfibre, leaving the OEM paddle untouched. Because no holes are drilled and no fasteners are added, this part has zero impact on Mercedes-Benz factory warranty on the steering column or transmission ECU.

Pairing within the Mansory G-class W463A G500/G63 programme

The shift paddles are the smallest of three or four cabin parts that get specified together. Most customers buy them at the same time as the Mansory Sport steering wheel II, which replaces the OEM rim with a flat-bottom 3K twill rim and sets the geometric tone the paddles have to follow. To frame that rim with matching alloy-and-carbon detailing, owners then add the Sport steering frame around the spokes and the steering wheel panel surround. Together those four parts — wheel, frame, panel, paddles — turn the W463A cabin from "Mercedes-with-an-AMG-badge" into a fully-bespoke Mansory cockpit, all without a single dashboard module being unplugged.

Maintenance & Durability

Carbon-faced cabin parts are easier to live with than carbon exterior parts because they never see UV, road salt, stone chips, or detergent run-off. A monthly wipe with a clean microfibre and a drop of automotive interior cleaner — or just plain distilled water — keeps the lacquer on the carbon face mirror-clear. Avoid solvent-based dashboard cleaners that contain ammonia, alcohol, or silicone-heavy "shine" products: ammonia hazes the clear coat over a couple of years, and silicone leaves a slick film that defeats the textured grip you are paying for. The 6061-T6 alloy edge is anodised, not painted, so light scratches from rings or watch bracelets buff out with a microfibre and a tiny amount of metal polish. Expected lifespan with normal cabin use is the lifetime of the vehicle; the only realistic failure mode is the 3M VHB releasing if the paddles are repeatedly steam-cleaned at >70 °C, which is why we recommend keeping detailing steam wands away from the column.

Lead Time & Warranty

Lead time on extended shift paddles is among the shortest in the Mansory catalogue: typically 2–3 weeks from order confirmation, because the alloy cores are batch-machined and the carbon face plates are pulled from the same laminate sheets that supply the steering wheel programme. A 12-month manufacturer warranty covers manufacturing defects — laminate voids, anodising blemishes, VHB tape adhesion failure under normal cabin use. Warranty does not cover impact damage, reckless removal without warming the tape, or aftermarket attempts to glue the paddles back on with non-original adhesives.

FAQ

Q: Will these paddles work on a 2017 G63 W463 (pre-facelift)?
A: No. The paddles are cut for the W463A column launched in 2018. The pre-2018 W463 has either no paddles or a different paddle nub geometry, and the VHB clip will not seat correctly.

Q: Do I lose any electrical function — cruise control, voice button, downshift logic?
A: No. The paddles are purely mechanical lever extensions clipped over the OEM paddle. They do not interrupt, modify, or wire into any vehicle bus. The 9G-Tronic or AMG SpeedShift transmission sees exactly the same input as before.

Q: How heavy are they per pair, and does the steering column feel different?
A: About 60 g for the pair. The OEM paddles already weigh more than that, so the rotational inertia change is below perceptible threshold. Steering feel and self-centring torque are unchanged.

Q: Can I order them in matte clear instead of glossy clear lacquer?
A: Yes — matte satin clear is a no-cost option at order time. Specify "matte" in the order notes and the laminate will be finished with a satin urethane top coat instead of the glossy automotive 2K clear.

Q: If I sell the car, can the next owner have the OEM paddles back to stock-look?
A: Yes. Warm the extensions with a hairdryer for ~60 seconds, lift them off with a plastic trim wedge, and clean residual VHB with isopropyl alcohol. The OEM paddles underneath are completely untouched and pass any Mercedes-Benz dealer inspection.

Pair the extended shift paddles with the Mansory Sport steering wheel II, the Sport steering frame, and the steering wheel panel for a fully coordinated W463A cockpit. To configure your cabin spec contact us on WhatsApp +44 7488 818 747 or [email protected].
