Sport steering frame Mansory for Mercedes G-class G500 / AMG G63 W463A

Sport steering frame Mansory for Mercedes G-class G500 / AMG G63 W463A

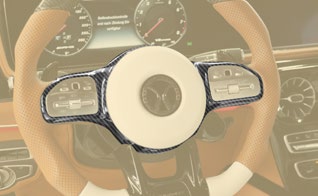

The Mansory sport steering frame is the carbon ring that hugs the central hub of the wheel — the slim surround sitting between the airbag pad and the leather-wrapped rim. On the W463A G-class it converts a stock-looking centrepiece into a continuation of the Mansory dashboard programme, a small ring that catches the driver's eye every time the door opens. Spec'd as part of the wider Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 build, it pairs with the carbon airbag cover, the dashboard panel and the lower steering surround for a unified hub aesthetic. Owners ordering Wheel I or Wheel II almost always tick this frame too.

Construction & Materials

The frame is moulded from 3K twill prepreg over a thin hand-laid scrim, then autoclave-cured for void-free density and dimensional accuracy around the OEM clip channels. Wall thickness is held at 1.6 mm so the ring nests under the wheel hub trim without binding the airbag pad release path or the horn contacts. The rear face is left semi-textured to grip the OEM clip seats; the visible front face receives a multi-coat 2K clear lacquer flatted and polished to a deep mirror gloss.

• Weave: 3K twill 2x2, axis aligned to the wheel's vertical centreline.
• Cure: autoclave at ~120 °C, 6 bar — full prepreg consolidation.
• Wall: 1.6 mm avg, 2.0 mm at clip bosses for retention strength.
• Weight: ~150 g — adds nothing meaningful to wheel inertia or steering feel.
• Mounting: OEM clip-on, snaps onto the existing wheel-hub clip channels, no glue.
• Finish: clear 2K lacquer, ~80 µm, hand-flatted, polished, UV-stable resin.
• Backing: matte black scrim where the ring contacts the wheel body, prevents rattle.
• Edge return: bevelled inner lip seats flush against the airbag pad gap line.

Design & Visual Function

This is a trim part, not an aero piece, so the design conversation centres on weave alignment and how light moves across the ring. The Mansory cutter aligns the 2x2 twill so the diagonal threads bisect the steering hub at exactly 45° from the 12-o'clock position, which means the carbon weave reads as a clean diamond pattern straight ahead — the driver's most-used wheel angle. As the wheel rotates the diamond pattern shears into linear stripes, then back to diamonds at every quarter turn, giving the cabin a subtle visual rhythm.

The lacquer system is tuned for cabin ambient light. Inside a W463A interior — leather, alcantara, indirect ambient LED — most plastic surrounds sink into shadow, but the carbon frame catches highlights from the upper dash LEDs and the door ambient strip. Drivers describe the frame as the part of the cabin that "wakes up" at night, a slim ring of reflected accent light around the wheel hub.

Geometrically the ring is a narrow Mansory-cut shape — wider at the bottom than the top, which compensates for the visual mass of the airbag pad and lets the frame sit visually balanced rather than crown-heavy. It is decorative only: no buttons, switches, capacitive zones or wiring run through it.

Compatibility & Fitment

This frame fits Mercedes-Benz G-class W463A only — the 4th-generation platform launched in 2018, Mercedes internal model code W463A. It works on G500, G550, G400d, G350d and AMG G63 (M177 4.0 V8 BT) as long as the cabin is fitted with one of the Mansory sport wheels: Wheel I or Wheel II. Stock AMG and stock-line wheels use a different hub geometry and the clip points sit in different positions, so this frame will not seat on a factory rim. The pre-2018 W463 (boxy generation, 1979–2018) is mechanically and dimensionally different and is not compatible. W464/W465 next-gen and the Mansory Gronos programme use separate hubs and separate frames.

Both LHD and RHD cars are accommodated — the frame is symmetric around its vertical axis so steering side, AMG package or non-AMG package, sunroof or hard-top, body-coloured spare cover or factory wheel — none of these affect fitment.

Installation & Reversibility

Fitment is a 5-minute job for a Mansory-trained technician and is fully reversible. The wheel is left in place — no airbag work is required and the airbag pad is not disturbed. The technician peels back the soft trim collar at the base of the airbag pad, presses the carbon frame onto the four OEM clip channels until each clip seats with a positive click, then re-presses the collar back over the frame's outer edge. No adhesives, no drilling, no removal of the airbag pad, no SRS reset. To revert to factory the technician squeezes the frame's tabs from the inside and lifts it free; the wheel returns to factory appearance with no marks.

Tools needed: a soft plastic trim wedge to lift the collar, a microfibre cloth, IPA wipe to clean the OEM clip seats. Total time including unboxing and inspection: 10–15 minutes. Suited to certified body shops and Mansory-trained installers; competent owners with airbag-aware experience can fit it themselves, but most cars come into the workshop for the Wheel I/II swap and the frame goes on at the same appointment.

Pairing within the Mansory G-class W463A G500/G63 programme

The frame is a hub part — it lives in the same square inch of cabin space as three other Mansory pieces and looks under-specified without them. The natural pairings are Sport steering wheel I or Sport steering wheel II — both wheels are designed around this frame's clip pattern, and the carbon weave on the wheel spokes flows into the frame's twill axis. The next pairing is Steering wheel panel, the lower surround that sits underneath the column shroud. Frame plus panel plus wheel reads as a single, intentional carbon assembly rather than three separate trim pieces. Owners going further usually add the carbon airbag cover and the middle dashboard trims for a fully matched front cabin.

Maintenance & Durability

Steering-wheel-area carbon lives in a hand-contact zone, so it accumulates skin oils, hand cream residue and the occasional sunscreen smear. The 2K lacquer resists all of these, but the routine matters: a weekly wipe with a damp microfibre and clean water, monthly with a pH-neutral interior cleaner, twice a year a leather-safe carnauba interior wax for UV protection. Skip ammonia-based glass cleaners — they haze the lacquer over time. Avoid abrasive sponges, dishwasher detergent and any paste polish containing cutting compound; the lacquer is hand-flatted and a single pass with the wrong product will sand the gloss off.

UV exposure through the windscreen is the long-term enemy. The 2K lacquer carries UV stabilisers and the frame is good for 8–12 years of daily sun before the gloss starts to flatten. Owners who park outdoors in strong-sun environments often add a windscreen sunshade — extends the gloss life materially. Chip repair on a frame is unusual because the part lives below the rim and rarely takes impact, but if the lacquer is grazed (e.g. a watch strap catching the surface), a Mansory-approved touch-up kit restores the gloss in one application. Delamination is unheard of on autoclaved trim of this size.

Lead Time & Warranty

Lead time is 2–3 weeks for the frame on its own — small clip-on parts cure and finish quickly. When ordered together with Wheel I or II the lead time aligns to the wheel build (typically 4–5 weeks) so the complete hub ships in one box. Warranty is 12 months from delivery against manufacturing defects: weave voids, lacquer pinholes, clip-channel fitment outside tolerance, and any colour-shift outside the Mansory specification. Wear from normal hand contact is not a defect.

FAQ

Q: Does this frame fit a stock AMG steering wheel?
A: No. The clip channel pattern is Mansory Wheel I / Wheel II specific. A factory wheel uses a different hub plate, and the frame will not seat correctly. The frame is sold as a complementary piece for the Mansory wheels.

Q: Will fitment trigger the airbag warning light?
A: No. The airbag pad is not disturbed during installation. The frame clips onto the wheel hub trim, not the SRS module. No code is set, no reset is required.

Q: I have W463A G500 with the AMG-Line package — does that change anything?
A: No. AMG-Line and base trim use the same hub on the OEM wheel, but you'll be fitting Mansory Wheel I or II anyway, so the frame seats identically on either spec car. G350d, G400d, G500, G550 and G63 all share the same outcome with the Mansory wheels.

Q: What's the weight, and does it affect steering feel?
A: ~150 g. That's roughly the weight of a smartphone clipped onto the rotating mass at the wheel centre — completely imperceptible at the rim. Steering feel is identical.

Q: Can I order the frame in a different finish — matte or forged-look?
A: Standard supply is glossy 3K twill in 2K clear lacquer. Matte clear lacquer is a build option on request — adds about a week to lead time. Forged-look is not offered for this part because the weave alignment with the spoke twill is part of the design intent.

Pair the frame with Wheel I or Wheel II and the steering wheel panel for a fully integrated carbon hub. Build quotes and combined lead-time confirmation: WhatsApp +44 7488 818 747 or [email protected].
