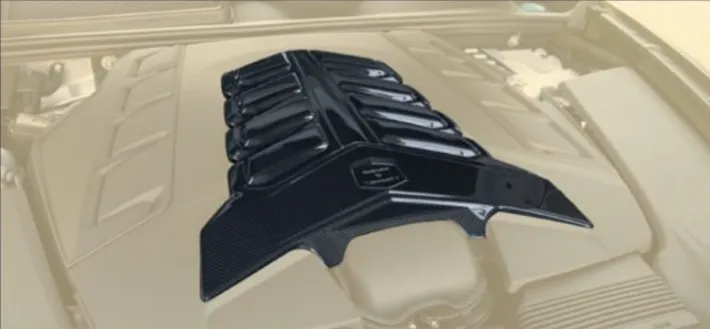

Engine cover Mansory Carbon for Audi RS Q8

Engine Cover Mansory Carbon for Audi RS Q8

The engine cover is the part of the Mansory programme nobody on the road will see — and that is the point. It exists for the moment the bonnet swings up at a meet, on a dealer floor, in your own garage when you walk past the car at night. Audi's 4.0L TFSI V8 biturbo with 48V mild-hybrid is a serious lump of engineering, but the OEM plastic insulator that lives on top of it does the job in the most utilitarian way possible: black moulded polymer, a stamped four-rings logo, foam wadding underneath. This Mansory carbon piece replaces that visual surface with autoclave-cured prepreg, an embossed Mansory wing, and a finish that matches the rest of your engine-bonnet, air-outtake splitter and inner-fender carbon. It is part of the wider Mansory Carbon Fiber Body kit set for Audi RS Q8 programme, the trim that closes the loop between exterior aero and what hides under the clamshell.

Construction & Materials

The cover is laid as a single autoclave-cured prepreg shell over the geometry of the OEM Audi V8 valve-cover insulator. It is a non-structural skin — its job is heat-tolerant aesthetics, not load — but Mansory still treats it as a finished aero-grade panel: full prepreg lay-up, heat-cured under pressure, demoulded with a class-A surface and trimmed by hand. The lacquer system is the part most owners never think about. A standard exterior 2K clearcoat will yellow and craze when bonnet-up engine-bay temperatures climb past 110 °C after a long hot lap or a slow crawl in summer traffic. The cover ships with a heat-resistant lacquer system rated for sustained engine-bay exposure, which is the same chemistry Mansory uses on the underside of the bonnet itself.

• Weave — 3K twill, Mansory factory pattern, embossed wing emblem moulded into the centre of the panel
• Cure — autoclave prepreg, heat-cured for dimensional stability over the V-banked turbo region
• Wall thickness — 1.4–1.6 mm at the visible face, locally thicker around the clip bosses
• Weight — approx. 1.1 kg (the OEM plastic insulator weighs roughly the same; this is a visual swap, not a weight-save)
• Heat-resistant lacquer — high-temperature 2K system, gloss as standard, satin available on request, stable against UV-yellowing under bonnet-up sunlight at fuel stops
• Underside heat-shield — closed-cell foam wadding bonded to the back of the carbon, replicating the OEM acoustic/thermal insulation function
• Mounting — OEM-style clip-on retention to the existing plastic substrate; no fasteners, no drilling, no glue
• Finish options — gloss lacquer (standard), matte lacquer, raw weave with UV-stable matte (special order)

Design & Visual Function

The Audi V8 biturbo packages both turbochargers in the hot-V — between the cylinder banks, above the engine — which is why the OEM cover sits taller in the centre and slopes off toward the cam-cover edges. The Mansory carbon piece preserves that exact silhouette so the central plenum and turbo housings stay below the surface as Audi engineered them; nothing is cut or rerouted on the actual engine. What changes is the surface you see. The 3K twill is laid so the weave runs longitudinally — front to rear of the engine — which makes the cover read as one continuous diagonal pattern when you look down the V from the front, rather than fighting the eye with a transverse weave that would clash with the angled fuel rails and coil-on-plug array at the bank tops.

The embossed Mansory wing sits centred over the V, where the OEM cover carries the four-rings badge. It is not a stuck-on plaque — it is a moulded relief in the carbon itself, which means it will not lift, fade or shed an adhesive line over a few summers of heat-soak cycles. The lacquer is finished to mirror the upper surface of the engine bonnet, so when the bonnet is open the carbon plane reads as continuous: bonnet underside (carbon) → engine cover (carbon) → inner fender liners (often carbon on a fully optioned car). It turns the bay from a service compartment into a finished display surface.

For owners who specify the car with the illuminated Mansory front mask and rear logo panel, this part closes the visual story. The whole car becomes a Mansory object front, back, top, and under-bonnet — and at events where the clamshell stays open, the engine bay is what people photograph. The OEM black plastic insulator under those circumstances reads as unfinished. The carbon cover reads as deliberate.

Compatibility & Fitment

Audi RS Q8 (4M chassis, MY2020+; pre-facelift 2020–2023 and facelift Performance 2024+). The 4.0 TFSI V8 biturbo engine architecture and its valve-cover/insulator geometry did not change with the 2024 facelift, so a single SKU covers both pre-facelift and Performance cars. The cover is keyed to the OEM clip pattern on the plastic substrate that sits on top of the engine — these clip points are present on every RS Q8 since launch. The piece does not interact with the dipstick, the oil-fill cap, the engine-bay fuse box, the brake-fluid reservoir or the washer bottle; all OEM access points stay where Audi put them. ACC, parking sensors, and any other body-side electronics are unaffected because this is engine-bay trim, not bumper or body trim.

Installation & Reversibility

This is the easiest part in the whole RS Q8 Mansory programme to fit. Lift the bonnet, walk to the front of the engine, and pull the OEM plastic cover straight up — it disengages from four rubber-grommeted ball studs on the cam covers. The Mansory piece carries the same clip-receiver pattern on its underside, replicated in moulded bosses that line up with the OEM ball studs. Press it down, feel the four clips engage, done. Tools: none required, possibly a soft cloth to keep fingerprints off the lacquer. Time: under five minutes, and that includes wiping the engine bay clean while the OEM cover is off. Reversibility: total. There is nothing to drill, nothing to glue, nothing to trim. The OEM plastic cover goes into the boot or the loft and the carbon piece goes onto the car.

The RS Q8's air suspension is irrelevant for this fitment — the bonnet height and engine-bay clearance are unaffected by ride height — but if you happen to be having other Mansory carbon fitted (front splitter, race flaps, rear bumper splitter), it is a sensible part to swap at the same time so a single visit to the body shop covers exterior aero and interior bay trim together.

Pairing within the Mansory RS Q8 programme

Within Section A — Mansory Carbon (genuine) — the engine cover is the smallest part of a three-piece bonnet story. It is specified almost exclusively alongside the carbon bonnet itself and the bonnet's exhaust splitter, because the three together turn the front of the car into a single carbon surface from the windscreen forward. Recommended siblings:

• Engine bonnet Mansory Carbon — the exterior clamshell; carbon outside, carbon underside, and now carbon engine cover beneath. Single visual story.
• Air outtake engine bonnet splitter — the carbon vent-trim sitting in the bonnet cut-out; visually echoes the engine cover when the clamshell is closed.
• Body kit I Mansory Carbon — for owners going the whole way; the engine cover is the small interior detail that finishes the full-kit car when the bonnet rises.

Maintenance & Durability

An engine-bay carbon part lives a different life from an exterior part. It does not face winter salt, gravel or carwash brushes, but it does face heat soak and the chemistry of an engine bay — oil mist, brake-fluid splashes if you ever top up the reservoir carelessly, the occasional droplet of coolant. Care is straightforward: wipe with a microfibre and a pH-neutral cleaner; never use ammonia-based glass cleaner near it (kills the lacquer); never use degreasers or aggressive solvents directly on the carbon (they will haze the clearcoat over time). Heat-soak yellowing is the failure mode to watch for over the long term — this is why the cover ships with high-temperature lacquer; a standard exterior clearcoat would not last on this part. Expected service life with normal use is well past the rest of the car. If a chip or scuff develops from a careless service visit, a Mansory-trained finisher can resand and re-lacquer the affected area without remoulding the panel.

Lead Time & Warranty

Lead time: 4–6 weeks from order. The engine cover is one of the simpler Mansory carbon parts to manufacture — single mould, single colour-of-record finish — so it sits at the shorter end of the programme's lead-time window. Specifying matte lacquer or raw weave adds 1–2 weeks. Twelve-month warranty against manufacturing defects (delamination, lacquer failure, clip-boss separation, weave inclusion). Heat-soak induced yellowing is excluded for any specification with a non-Mansory lacquer applied after delivery; the standard factory lacquer is warrantied.

FAQ

Q: Does this fit both pre-facelift and 2024+ Performance?
A: Yes. The V8 biturbo and its valve-cover geometry did not change at the facelift, so a single SKU covers both.

Q: Will the lacquer yellow over years of heat-soak?
A: Not with the supplied high-temperature 2K system. Standard exterior clearcoats will yellow on this part — that is why the cover ships with engine-bay-rated lacquer.

Q: Is the underside heat-shielded?
A: Yes. A closed-cell foam wadding is bonded to the back of the carbon, replicating the OEM acoustic and thermal insulation function.

Q: Does it bolt down or clip on?
A: Clip-on. Four moulded boss receivers on the underside engage the OEM ball studs on the cam covers. No tools, no drilling.

Q: Can I get it in matte instead of gloss?
A: Yes. Matte lacquer is a special-order finish with about 1–2 weeks added lead time. Raw matte weave is also available.

Q: Does it interfere with oil checks or service access?
A: No. The dipstick, oil-fill cap, brake reservoir, washer bottle and fuse box all remain accessible exactly as on the OEM plastic cover.

Pair this engine cover with the carbon bonnet and the air-outtake splitter to finish the front-of-car story under and over the clamshell. Order on WhatsApp +44 7488 818 747 or by email at [email protected] and we will confirm finish, lead time and packaging on the same working day.
