Door switch pane Mansory for Mercedes G-class G500 / AMG G63 W463A

Door switch panel Mansory for Mercedes G-class G500 / AMG G63 W463A

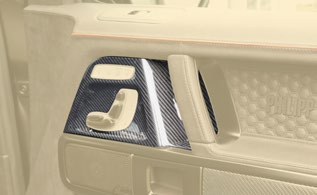

The Mansory door switch panel set is the carbon insert that frames the window, mirror and door-lock switch cluster on each W463A door card armrest, replacing the factory plastic surround with autoclaved 2K plain-weave fibre. Supplied as a 4-piece kit — one panel per door — it sits at the most-touched point of the cabin, where fingers rest every time the driver lowers a window or arms the lock. Within the wider Mansory Carbon Body Kit for Mercedes G-class W463A G500/G63 programme it is the small, high-frequency detail that ties together the larger console and dash trims, completing the carbon thread that runs from the dashboard fascia down to the lower door inserts and across the threshold.

Construction & Materials

The panel core is laid up from genuine T300-class 2K plain-weave prepreg, chosen specifically because the tighter 2x2 plain pattern reads cleanly along the narrow ribbon of carbon that frames each switch aperture. Larger 3K twill would visually fight the rectangular cut-outs; plain weave keeps the geometry calm. Every panel is autoclave-cured under positive pressure, then CNC-trimmed to OEM switch-bezel tolerances so each individual button (window up/down, mirror joystick, mirror fold, central lock, child-lock for rears) clears without rub.

• Weave: 2K plain weave, semi-matte plain over a black tracer scrim for uniform colour
• Cure: autoclave at 6 bar / 130 deg C, 90-minute dwell for full cross-link
• Wall thickness: 1.6 mm shell, 2.0 mm at the OEM clip lands
• Set weight: 0.32 kg total for the 4-piece set (approximately 80 g per panel)
• Mounting: factory-style spring clips that engage the existing W463A door-card receivers — no adhesive contacts any switch body
• Finish: high-touch UV-stable two-component semi-gloss lacquer, 50–55 GU at 60 deg, formulated to resist hand-oils, sunscreen and alcohol-based wipes
• Cut-outs: laser-aligned for the OEM switch pack, including the chrome surround on the driver-side master switch
• Edge treatment: machined chamfer with a sealed lacquer wrap so the weave does not lift along the long inner edge

Design & Visual Function

This is a trim part, so the brief is purely visual integration — but the visual work happens at very close range. Driver and passenger eyes are 30–40 cm from this panel every time they reach for a switch, so the weave alignment matters more than on any exterior surface. Mansory orients the warp threads parallel to the long axis of the panel so the weave reads as a continuous ribbon rather than a busy chequer when the panel is glanced at peripherally.

The semi-gloss lacquer is deliberately a step less reflective than a piano-black exterior part. Inside the cabin, ambient light from the door-mounted ambient strips, the puddle lamps and the courtesy lights would pool unpleasantly on a fully-glossy door insert; the half-step matte finish diffuses those pools into a soft sheen that lets the weave structure read instead of the highlight. The result is that the switches themselves remain the bright objects in the eye, and the carbon frame fades into supportive geometry — exactly what an interior trim part should do.

Visually the panel also bridges between the dashboard line and the lower door. On a stock W463A the textured plastic bezel breaks the carbon-leather rhythm of a fully-trimmed cabin; replacing it with weave-on-weave continuity is what turns a part-trimmed interior into a finished one.

Compatibility & Fitment

Designed for the Mercedes-Benz G-class W463A platform — the 4th-generation chassis introduced in 2018 and Mercedes-internal model code W463A. Fits all five-door W463A variants: G500, G550, G400d, G350d and AMG G63 (M177 4.0 V8 BT). Both LHD and RHD door cards are accommodated with the same set, since the W463A switch-pack layout is mirrored symmetrically and the panel cut-outs are common. Pre-2018 W463 (the original boxy generation, 1979–2018) is NOT compatible — the door card geometry, switch-pack location and clip pattern are entirely different. W464/W465 Gronos and any Mansory Gronos-bodied derivative likewise use a separate trim set. The panel works with both base and AMG-line door cards, with or without the optional ambient-light upgrade, and does not interfere with the optional rear sunshade switch where fitted.

Installation & Reversibility

Installation is a clip-on swap, no drilling and no glue. Per door: remove the existing plastic switch surround by pulling firmly upward at the front edge — the OEM clips release; lift the surround clear, unplug the switch loom from the back of the bezel, transfer the switch pack into the new carbon panel (eight Torx T10 fasteners, captive), and reseat the panel into the door card until both clip rows snap home. Total time for a careful DIY installer is 30–40 minutes per door, around two hours for the full set including a final wipe-down. Tooling required: T10 Torx, plastic trim removal wedge, microfibre and isopropyl wipe.

Critically, no adhesive ever touches a switch body. The switches transfer mechanically into the carbon panel and remain individually serviceable — a window-switch failure can be diagnosed and the affected switch swapped without disturbing the carbon, which is the failure mode this design exists to prevent. Reversibility is complete: keep the original plastic surrounds in the parts bag and the cabin can be returned to factory in under two hours. Because the work is door-card-only and does not touch the airbag system or the door wiring loom upstream of the switch connector, no specialist coding is required.

Pairing within the Mansory G-class W463A G500/G63 programme

The door switch panels are the small element that completes a fully-trimmed cabin and are most often specified together with the broader interior pieces. Owners building a coordinated cabin pair these with the Interior trim set for end-to-end weave continuity, with the Middle console + dashboard trims so the same 2K plain weave runs from dash to door, and with the Carbon roof handles to bring the carbon detail up into the upper cabin volume. Specified together, these four parts are the difference between a partial carbon refresh and a fully resolved interior.

Maintenance & Durability

Door switch panels live in the highest-contact zone of the cabin, so the lacquer chemistry is everything. The 2K UV-stable system used here is rated for prolonged hand-oil contact and resists clouding from suncream, alcohol-based hand sanitiser and the everyday wipe-downs that any interior endures. Routine care is a damp microfibre with pH-neutral interior cleaner — nothing more. Avoid ammonia-based glass cleaners, household degreasers, abrasive sponges and any silicone-heavy "dashboard shine" sprays: silicones build a tacky film on lacquered carbon and dull the weave read within months. A single quarterly application of a polymer interior sealant designed for piano-black trim will keep the lacquer hydrophobic and reduce micro-scratching from rings and watch buckles. With reasonable care the lacquer typically holds clarity for eight to ten years before any refresh is warranted; chip repair on a single panel is straightforward at any carbon-trim specialist.

Lead Time & Warranty

Lead time for a 4-piece switch panel set runs 2 to 3 weeks from confirmed order, faster than the larger interior pieces because the moulds are short and the autoclave loads are lighter. Each set ships in foam-cut transit packaging with the captive Torx fasteners pre-installed. Warranty is 12 months from delivery against manufacturing defects — delamination, voids, lacquer failure, dimensional fitment — with photo-evidence claims handled directly through hodoor.world.

FAQ

Q: Does the panel cover the switches themselves or only the surround?
A: Only the surround — the original switches transfer into the carbon panel and remain fully serviceable. No adhesive touches any switch body.

Q: Will my window auto-up / auto-down still work after fitting?
A: Yes. The switch pack is unchanged, only the visible bezel is replaced. All electrical functions including auto, anti-pinch and global open are unaffected.

Q: Is the set the same for LHD and RHD cars?
A: Yes. The W463A door switch packs are mirrored symmetrically across the cabin so a single 4-piece set covers both layouts.

Q: Can I have the lacquer in matte instead of semi-gloss?
A: Matte and full-gloss options are available on request at order time. Semi-gloss is the default because it best balances ambient-light diffusion with weave clarity at hand distance.

Q: If a single switch fails years later, do I have to remove the carbon?
A: No — the switch can be released from the back of the carbon panel with the same Torx fasteners used at installation and replaced individually. This serviceability is exactly why the design avoids adhesive on switch bodies.

Pair the door switch panels with the matching interior trim set for a fully resolved cabin, or speak to us about coordinating finish and lacquer level across the set. WhatsApp +44 7488 818 747 or [email protected].
