Air intake for front mask Mansory for Mercedes-AMG S63E

Mansory Air Intake for Front Mask for Mercedes-AMG S63E

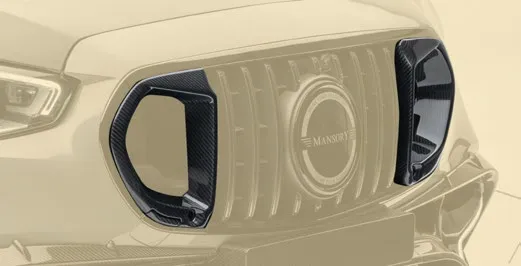

Sitting just inboard of the AMG vertical-bar grille and outboard of the central three-pointed-star pod, the Mansory air-intake-for-front-mask carbon insert reorganises the negative-space volumes that the OEM AMG fascia leaves blocked off. The S 63 E PERFORMANCE saloon needs more cool-air than its sister W223 variants because it carries an AMG biturbo V8 with two charge-air coolers, an integrated rear-axle electric motor, a 13.1 kWh high-voltage battery pack with its own low-temperature radiator, and a 9-speed AMG Speedshift MCT auxiliary cooler. This part opens a dedicated, ducted corridor for that thermal task while keeping the OEM AMG vertical-bar grille and AMG Active Multibeam beam pattern visually intact. It is one of the more functional small-format pieces in the parent Mansory Carbon Fiber Body kit set for Mercedes-AMG S63E.

Construction & Materials

This is a single-skin carbon insert with a moulded internal duct lip. Because it sits in a hot-air zone behind the grille, the layup uses an elevated-temperature epoxy system rather than the cosmetic resin used on body panels.

• 2K plain-weave outer A-side surface (3K twill option for a busier visual)
• RTM (resin-transfer moulding) cure with elevated-Tg epoxy, 145 °C post-cure
• Wall thickness 1.8–2.4 mm at the duct lip, 3.0 mm at the bracket landings
• Net dry weight 0.45–0.6 kg
• Stainless threaded inserts at OEM AMG bumper-skeleton mount points
• 3M VHB 5952 along the inner return for sealing against air bypass
• UV-stable 2K clear lacquer with extra hardness for stone strikes (gloss / satin)
• Substrate prep: solvent wipe, 3M Cleaner-Primer 94, raised-edge masking

Design & Visual Function

The OEM AMG fascia hides several blocked-off pockets behind its vertical-bar grille — areas that look open from the outside but in fact have a structural dam baffling the airflow inboard. The Mansory mask intake changes that geometry: it removes the dam and routes a controlled stream of incoming air toward the auxiliary radiator stack and the HV-battery low-temp circuit. On a 2,510 kg saloon at sustained autobahn pace, the air arriving at the front of the AMG V8's intercoolers is the single biggest determinant of intake-air temperature stability, and that temperature stability is what keeps the MCT 9-speed cooler from soak-loading on long, fast runs.

Aesthetically the part is deliberately restrained. The 2K plain-weave skin reads as fine, almost cloth-like grain at viewing distance, which sits comfortably against the high-gloss AMG Silver-Chrome grille surrounds without competing for visual mass. The duct mouth is recessed 12–14 mm behind the visible carbon face so it never looks like a hole in the bumper from a low camera angle — the eye reads a panel, not a duct.

The visible duct geometry has an inner shroud that prevents the eye from seeing into the engine bay even in raking light, which keeps the front mask reading as a single sculpted carbon plane.

Compatibility & Fitment

Mercedes-AMG S 63 E PERFORMANCE (W223), 2023+, saloon. The mount points are the OEM AMG bumper-skeleton studs that sit just inboard of the grille frame. AMG Night Package and AMG Carbon Package cars are both supported — the AMG Carbon Package's grille-frame insert is unaffected. The intake does not touch the AMG Active Multibeam LED housings, the front parking sensors, or the OEM AMG vertical-bar grille. AIRMATIC ride height is irrelevant to this part since it sits in the upper bumper plane. The duct opens into the existing OEM cooling-pack vestibule, so no auxiliary radiator or duct work is required to make use of it; cars with optional AMG Carbon Ceramic Brakes will see slightly more airflow at the inner brake-cooling intake by virtue of the steadier upstream flow.

Installation & Reversibility

Plan 30–45 minutes with the front bumper still on the car. Required tools: 8/10 mm sockets, plastic trim picks, isopropyl alcohol, 3M Primer 94, low-tack masking. Workflow: remove the OEM AMG mask blank or grille fillers (two screws on each side), wipe and prime the OEM bumper-skeleton bond pads, mate the carbon insert to the studs, torque the M6 fixings to 8 Nm, press the VHB seam home with a roller for 30 seconds and let cure for 24 hours before exposure to high-pressure water. Reversibility is excellent because the original AMG fillers can be reseated with no remediation. The OEM bumper-skeleton studs are reusable indefinitely; no drilling, no cut-and-shut, and no fascia separation is performed during the install. Owners who track-day the car will benefit from re-torquing the studs annually since the elevated-Tg layup is fully isothermally stable but the surrounding bumper plastics expand at a higher rate, and a small witness mark on the carbon edge is the early-warning signal that the bond is starting to walk.

Pairing within the Mansory Mercedes-AMG S63E programme

Most often combined with the Front splitter with LED DRL directly below for a coordinated front-fascia carbon programme, with the Logo for grille mask to refresh the central three-pointed-star pod, and with the Sport outtake for front fender to give the cool-air corridor a matching exit path through the wheel arch.

Maintenance & Durability

The intake lives in a stone-strike zone, but the recessed duct lip protects the visible weave from direct gravel rash. Hand wash with pH-neutral shampoo using a soft mitt and avoid pressure-jet contact closer than 30 cm. Bug residue should come off with a dedicated bug-removal product rather than alkaline pre-wash; the cooler air corridor behind the part collects bug strike during the warm season, and a cotton bud rinsed in distilled water cleans the duct lip without cloth fibres catching. Wax: a soft carnauba twice a year, or a ceramic spray sealant every wash. Keep ammonia glass cleaners well clear of the duct lip — they will dull the lacquer along the high-glare edge. Clearcoat lifespan is 10–13 years given the part's sheltered position. Owners who garage the car under fluorescent or HID workshop lighting should still apply a UV ceramic top once a year — even indirect indoor UV will eventually flatten a high-build clearcoat at the gloss level the AMG Silver-Chrome surrounds reflect at, and a yearly wipe-on top keeps the carbon's optical depth aligned with the surrounding chrome.

Lead Time & Warranty

Lead time 2–4 weeks. Custom finishes (matte, satin, forged-look) add roughly one week. The intake's small format and lack of LEDs keep it on the faster end of the programme. Warranty: 12 months against manufacturing defects — delamination, voids, fitment shortfall, clearcoat blistering — counted from delivery. Engine-bay heat soak is accounted for by the elevated-Tg layup, so heat blistering is covered if it occurs in the first year, but stone-strike and chemical-staining damage are not. Each unit is shipped in a foam cradle with the duct lip oriented vertically so transit shock is absorbed by the bracket landings rather than by the visible lacquer surface, and a QC photograph documenting weave alignment under raking light accompanies the part.

FAQ

Q: Is this a real functional intake or a cosmetic blank?
A: It is functional. The OEM AMG mask has a baffled-off pocket that the carbon part opens up; air arriving here continues through the existing OEM cooling vestibule to the auxiliary radiator stack and HV-battery low-temp circuit. There is no mesh insert behind the duct lip because the OEM cooling pack already includes its own debris-screen layer.

Q: What is the weight saving compared to leaving the OEM mask blank in place?
A: It is a small net loss of 0.2–0.4 kg because the carbon insert plus its hardware weighs slightly more than the OEM plastic blank. The benefit is thermal management and aesthetics, not mass reduction.

Q: Will it pull more air past the AMG biturbo charge-coolers?
A: Indirectly yes — the intake doesn't bypass the OEM coolers, it stabilises the upstream pressure field so the existing coolers see steadier mass-flow at sustained speed.

Q: Does it interfere with the AMG Active Multibeam LED beam pattern?
A: No. The part sits inboard of the headlight housing and below the upper-grille horizontal, well outside the projection cone.

Q: How does it interact with the AMG vertical-bar grille?
A: It sits inboard, between the grille frame and the central star pod. The OEM grille is not touched.

Q: Can it be fitted alongside an AMG Carbon Package fascia?
A: Yes. AMG Carbon Package items are unaffected and the Mansory part adds a separate carbon plane in a different location.

Pair it with the LED-DRL splitter and grille-mask logo to refresh the entire front mask in one weekend. To configure your build, message WhatsApp +44 7488 818 747 or write to [email protected].
