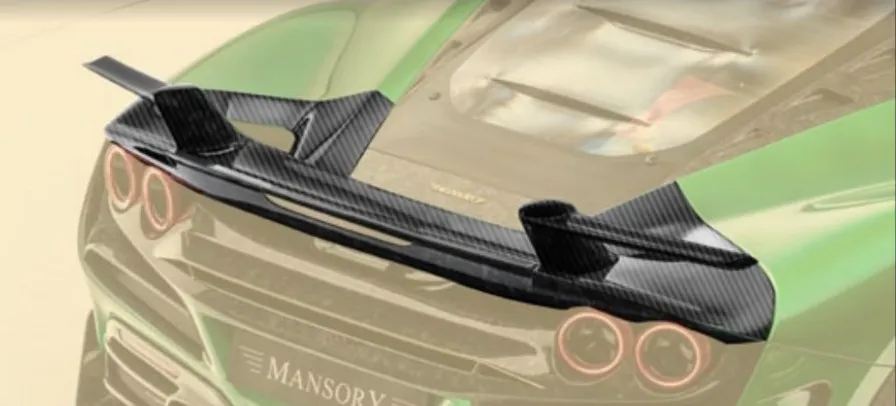

Rear spoiler with wing Mansory Carbon for Ferrari F8 Tributo

Mansory Carbon Rear Spoiler with Wing for Ferrari F8 Tributo

The rear spoiler with wing is the most obviously motorsport-flavoured panel in the F8 carbon roster: a two-tier deck-lid solution that pairs a sculpted spoiler riser with an upper wing element seated above the existing rear-deck plane. It works in concert with — never against — the F8 Tributo's signature OEM blown-spoiler aperture cut into the rear bumper, the device that took the rear-axle downforce duty over from the 488's old rear wing. Together they read as a single coherent rear-aero strategy. The part lives within the wider Mansory Carbon Fiber Body kit set for Ferrari F8 Tributo programme, sitting on the deck above the F154 V8 BiTurbo's mid-engine cover and resolving the 720 PS / 770 Nm flat-plane crank theatre with a visual statement that owners specify when the rear-kit alone reads too clean. Tributo Coupé and Spider are both catered for; the wing geometry tracks the Spider's revised tonneau line so the silhouette stays honest with the roof down.

Construction & Materials

Two carbon assemblies arrive in one box: the lower deck-lid spoiler, which bonds and bolts to the rear deck where the OEM trim sits, and the upper wing element with its integrated end-plates and pedestal mounts. Both pieces are autoclave-cured prepreg with a stitched interlayer at the wing-pedestal load path, where the bending moment under aero load is concentrated. The wing chord is profiled — not a flat plank — to give a real lift coefficient in line with the rest of the Mansory F8 aero programme.

• Weave: 3K twill 2x2 outer ply for surface order; 2K plain optional on the wing element for a finer scale where the camera catches it
• Cure: autoclave at ~120°C with a multi-stage ramp; vacuum-bag debulk before final cure for void-free pedestals
• Wall thickness: 2.4–3.2 mm on the spoiler skin; pedestals laid up to 5–6 mm at the bolt boss
• Combined weight: ~3.2–3.8 kg as a pair, end-plates and hardware included
• Hardware: stainless studs into threaded bosses moulded into the lower spoiler; M6 socket-cap fixings for the wing-to-pedestal joint
• Finish: deep-gloss two-pack lacquer or exposed weave with UV-stable clear; matte 2K satin available on request
• End-plates: integrated, not bolt-on, so the wing reads as one casting from three-quarters
• Drainage: micro-channel relief on the underside of the wing leading edge so standing water does not pool over the engine cover

Design & Visual Function

This is the only F8 carbon part that meaningfully changes the rear silhouette in elevation. The lower deck-lid spoiler raises the trailing-edge line by a measured amount — enough to be read from across a paddock, restrained enough not to fight the F40-flavoured louvred Lexan rear three-quarter window above it. The upper wing element then sits on slim pedestals at the deck corners, leaving the central engine-bay glass cover visible from behind so the F154 V8 BiTurbo theatre underneath is not obscured.

Aerodynamically the part adds genuine rear-axle downforce above what the OEM blown-spoiler delivers on its own. The blown-spoiler stays exactly as Ferrari designed it — Mansory does not blank, route around, or interfere with the bumper-integrated aperture or its airflow path. The wing works the air the blown-spoiler has already energised, which is why the chord and angle of attack were settled on a profiled rather than a flat section. Rear visibility through the louvred Lexan is preserved; the wing trailing edge sits below the driver's eye-line through the central mirror because the pedestals were sized to keep it there.

Visually the assembly leans Ferrari Challenge-flavoured — there is a clear lineage to the kind of rear aero you see on the Challenge-spec cars in pit lane at Mugello. The carbon weave aligns longitudinally on the wing chord and laterally across the spoiler riser, so reflections track the body lines rather than fighting them. End-plates are sculpted, not slab-sided.

Compatibility & Fitment

Designed exclusively for the Ferrari F8 Tributo Coupé and F8 Spider, model years 2019–2024, with the F154 CB 3.9-litre flat-plane V8 BiTurbo and 7-speed F1 dual-clutch transaxle. Not compatible with the 488 GTB, 488 Pista or 488 Spider — different deck geometry, different rear-bumper aero, and the OEM blown-spoiler signature only appeared on the F8. Not compatible with the 296 GTB or 296 GTS either, which sit on a different platform with hybrid V6 hardware and an entirely different rear-deck profile. Mansory carries a separate parent for those cars; do not cross-fit. The OEM rear three-quarter Lexan window with its longitudinal louvres is left untouched, the rear-bumper blown-spoiler stays OEM, parking sensors and the rear-camera washer aperture remain in their factory positions, and engine-bay cooling apertures are not affected by the deck-lid mount. Type-approval considerations: the wing element is a visible aero device, so owners who plan to register the modification in jurisdictions with technical inspections should keep the Mansory homologation paperwork that ships in the box and consult their inspection authority before the test.

Installation & Reversibility

Plan on 4–6 hours with a Mansory-trained or Ferrari-experienced installer. The lower deck-lid spoiler can be specified in two mount strategies: an additional-fixings strategy that uses new bonded threaded bosses on the underside of the spoiler with a structural urethane bond to the deck (cleanest reversibility), or an OEM-mount strategy that re-uses the existing deck-lid trim hardpoints. The wing element is then bolted to its pedestals, which seat into machined cups on the lower spoiler. Tools: panel-bond gun, torque wrench (sub-10 Nm range for the wing-to-pedestal fixings), trim removal kit, masking and a clean alignment gauge — Mansory ships the gauge with the part. The deck must be cleaned of all wax and silicone, primed where the bond is structural, and allowed to cure undisturbed overnight. Reversibility is good: the spoiler comes off cleanly if the bonded strategy was specified correctly, and the original deck-lid is unmolested. Expect Ferrari authorised dealers to flag the modification at service intake; this is a documentation conversation, not a service refusal, but owners should plan for it.

Pairing within the Mansory F8 programme

The natural primary pairing is with Rear kit Mansory carbon for Ferrari F8 Tributo — the rear bumper assembly that frames the OEM blown-spoiler in carbon, so the deck-lid spoiler with wing reads as the upper tier of one continuous rear sculpture rather than a bolt-on afterthought. Owners specifying the engine-bay carbon trio typically add Engine logo section Mansory carbon for Ferrari F8 Tributo next, since the wing pedestals frame the engine cover glass and the prancing-horse logo sits directly inside that frame from the three-quarter rear angle. A third common pairing is Rear fender air intakes splitter Mansory carbon for Ferrari F8 Tributo, which carries the carbon aero language outboard onto the rear haunches so the wing does not sit alone in the rear elevation.

Maintenance & Durability

Lacquered carbon lives a long life on the F8 deck if it is treated like the paint it sits next to. Ceramic-coat the wing and spoiler at install: the pedestal undersides see the most abuse from rear-camera washer overspray, road grime kicked up off the rear tyres, and standing water during transport. Hand-wash only, two-bucket method, neutral-pH shampoo. Avoid alkaline wheel cleaners, ammonia-based glass products and anything labelled abrasive — these all fog or craze the 2K clear over time. Carnauba is fine but ceramic is better here because the wing chord faces the sun on track days and UV is the slow killer. PPF over the leading edge of the wing is sensible if the car spends time on circuit and picks up gravel; the leading edge is the natural impact zone. The F8's carbon-ceramic brakes throw hot, abrasive dust and the inboard end of the wing sits within range — periodic inspection of the inboard end-plate finish is worth scheduling at every wheels-off service. If the wing is chipped, repair workflow is straightforward: scuff, structural epoxy fill, re-clear, machine polish; a full re-lacquer is preferable to a spot-blend on the wing chord because reflections are unforgiving on a horizontal surface.

Lead Time & Warranty

Lead time runs 4–8 weeks from order confirmation, in line with Mansory bespoke production cadence — the wing element is laid up and cured in matched sets with the lower spoiler so weave alignment between the two pieces is consistent. A 12-month warranty covers manufacturing defects in the lay-up, bond, and finish.

FAQ

Q: Does this remove or compromise the F8's OEM blown-spoiler?
A: No. The blown-spoiler is integrated into the rear bumper and stays exactly as Ferrari designed it. The Mansory wing works the air the blown-spoiler has already energised; the two devices are complementary, not competing.

Q: Will it fit a 488 GTB or 296 GTB?
A: No. The deck profile, blown-spoiler hardware, and rear-bumper geometry are F8-specific. The 488 lacks the blown-spoiler altogether and the 296 sits on a different platform with hybrid V6 hardware — both have separate Mansory parents.

Q: Tributo Coupé and Spider both?
A: Yes — the wing pedestal geometry tracks the Spider's revised tonneau line so the silhouette stays consistent roof-up or roof-down.

Q: Can I keep the OEM deck-lid hardware and reverse later?
A: Yes if you specify the OEM-mount strategy at order. The bonded strategy reverses cleanly too; in either case the car returns to OEM with no visible scarring.

Q: How much rear visibility do I lose through the central mirror?
A: The wing trailing edge sits below the driver's eye-line through the louvred Lexan three-quarter window because the pedestals were dimensioned for that. Visibility is preserved.

Q: Is this homologated for road registration?
A: Mansory ships homologation paperwork with the part. Acceptance varies by jurisdiction inspection authority — owners should review the documentation before any technical inspection.

Pair this rear spoiler with wing with the rear kit and the engine-logo section to complete the F8's rear-aero and engine-bay carbon statement. Speak to a Hodoor specialist via WhatsApp +44 7488 818 747 or [email protected] for finish options, mount-strategy choice and lead-time confirmation.
