Rear spoiler Mansory for Rolls-Royce Spectre

Rear spoiler Mansory for Rolls-Royce Spectre

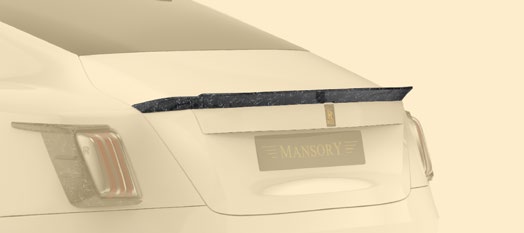

The Mansory rear spoiler for the Rolls-Royce Spectre is a trunk-lid ducktail — a discreet carbon lip bonded to the rear deck, not a GT-style swan-neck wing. Within the wider Mansory Carbon Fiber Body kit set for Rolls-Royce Spectre programme it occupies the most visible square decimetre on the car: the upper rear plane that owners see in profile and at every valet drop-off. Mansory's design intent here is restraint. The Spectre is a 5,453 mm super-coupe with a long deck and an almost yacht-like rear haunch; a high pedestal wing would look comical. Instead the spoiler reads as a sharpened OE crease — a 12–14 mm gentle ducktail break that sits flush at the leading edge, then peels up by a few millimetres along the trailing line to disturb pressure recovery just enough to weight the rear axle at speed.

Construction & Materials

The shell is a hand-laid pre-preg sandwich cured under autoclave heat and pressure, then trimmed on a five-axis fixture to the Spectre's exact trunk-lid radius. Because the part lives on a moving panel — the trunk torsions every time it opens, and slams closed onto a precision latch — the laminate is built up with extra plies along the leading edge and at the two outboard tips where flex and impact load concentrate. A flexible expansion gap is engineered into the underside bond line so the spoiler tracks the trunk lid's expansion through hot/cold cycles without stress-cracking.

• Weave: 3K twill 2x2 standard; 2K plain, forged-look chopped tow, or Mansory silver-thread weave on request
• Cure cycle: autoclave 6 bar / 125 °C pre-preg, post-cured for dimensional stability across the trunk-lid radius
• Wall thickness: 2.4–2.8 mm at the pedestal, stepped to 3.4 mm along the leading bond face for chip resistance
• Dry weight: ~0.95 kg lacquered, ~0.84 kg raw matte — versus an empty trunk lid this is a negligible torsion-mass increase, well within OEM hinge spring specification
• Mounting: precision-cut 3M VHB modified-acrylic foam tape (5 mm) plus two centring locator tabs that index off the trunk-lid factory shut-line
• Finish: high-build automotive clear lacquer (UV-stable, two-pack), or matte 2K satin, or raw weave with sealed pores; all finishes are colour-keyed at the leading edge to match the OE trunk-lid paint film thickness
• Edge treatment: hand-deburred and chamfered to a 0.6 mm break to prevent stone-chip propagation along the carbon weave
• Optional body-colour blend: leading 60 mm sprayed in OE paint code, trailing edge left in lacquered weave — a popular two-tone break for Spectre owners specifying Arctic White or Diamond Black bodies

Design & Visual Function

Mansory's brief here was to add tension without theatre. The factory trunk lid is one of Rolls-Royce's longest unbroken horizontal surfaces; the eye reads it as a deck. A soft ducktail break closes the visual line at the rear — the spoiler acts as a serif on the back of the car. From three-quarter rear the silhouette gains a perceptible kick that resolves the long roof-to-tail descent; from directly behind it is almost invisible, which is the point. Spectre is not a car that wants to advertise its modifications.

Aerodynamically the geometry is honest. At low speed the lip does almost nothing — Spectre's silence and absorbent ride do not need a wing to make sense of themselves. From around 110 km/h upward it starts disturbing upper-rear pressure recovery enough to translate into a small downforce contribution at the rear axle. Mansory's wind-tunnel work on this profile targets a balance, not a peak: the spoiler is designed to sit alongside the carbon rear diffuser so that front and rear lift coefficients trend together as speed climbs. Because Spectre is a 2,975 kg coupe with twin electric motors and immediate torque off the line, what owners actually feel is not raw downforce but rear-axle settle — the back of the car becoming slightly more planted at autobahn speeds without the front lightening to compensate. The drag penalty on highway cruise is essentially nil.

Visually the spoiler interacts with three rear features: the silver trunk emblem forward of it, the rear-light air outtakes flanking it, and the Spectre's coach-line break running through the rear haunch. Mansory align the spoiler's outboard tips with the upper edge of the rear-light outtakes — a deliberate horizontal continuity connecting the trunk lid to the rear quarter geometry. Two-tone paint breaks are the configuration most owners choose: body-colour leading edge with weave on the upper face, or full gloss black on Arctic White cars to echo the contrasting Pantheon Grille treatment.

Compatibility & Fitment

Rolls-Royce Spectre, MY2024+ — built only as an electric two-door super-coupe on the aluminium Architecture of Luxury spaceframe, so a single base trunk-lid profile covers both LHD and RHD. The Mansory spoiler is cut from the OEM trunk-lid CAD: leading-edge radius matches the factory shut-line within 0.4 mm and the tape line falls onto an OE flat plane that does not interrupt rain-channel drainage. The part requires no modification to the rear washer jet, the high-mounted brake-light strip, or the trunk-mounted radar/camera modules used by the driver-assistance suite. No impact on coach-door geometry — the spoiler sits well aft of the door cut.

Installation & Reversibility

Realistic install time is 60–90 minutes including paint prep, although a thorough body shop will spec the job at a half-day to allow bonding tape to cure under controlled temperature. The trunk-lid surface is degreased with isopropyl alcohol, then wiped with 3M VHB primer 94 along the bond footprint. The two locator tabs index against the factory trunk shut-line, holding the spoiler in alignment while the technician walks the leading edge for any deck-radius variance. Once dry-fitted and visually checked from three angles, the VHB liner is peeled, the part is set with hand pressure, and a calibrated roller applies 15 kg of even pressure across the bond face. The trunk lid is left closed for at least 24 hours at 18–22 °C for the acrylic adhesive to reach its working bond strength; full cure is 72 hours.

Reversibility is realistic but not painless: the VHB tape can be cut through with a fishing-line tool and the residue softened with adhesive remover, but micro-marks in the OE clearcoat are common after removal — most owners spec the spoiler as a permanent commit. DIY install is achievable; for cars with freshly-applied paint protection film over the trunk lid we recommend a Mansory-trained installer. Trunk-lid latch alignment should be re-checked after install — the 0.95 kg added load is within OEM spec, but verifying the soft-close mechanism still seats cleanly is good practice.

Pairing within the Mansory Spectre programme

The two strongest functional pairings are the carbon rear diffuser — which balances underbody flow against the spoiler's upper-surface pressure work — and the carbon rear-light air outtakes, whose horizontal line meets the spoiler's outboard tips and produces the unified rear graphic Mansory designed for the Spectre. For owners who want the rear deck to read as a single composed surface, adding the silver-logo trunk emblem finishes the panel: a centred jewel forward of the spoiler ducktail, with the diffuser closing the lower rear plane. This three-part rear ensemble is the most common Spectre carbon spec we see ordered together. Owners who have already committed to the Mansory roof spoiler at the top of the cabin tend to add this rear ducktail as the natural visual answer at the trunk — the two parts bracket the rear glass and the silhouette finally resolves.

Maintenance & Durability

Lacquered carbon on the rear deck is exposed to UV all day, so a ceramic coating rated for clearcoat — applied after a six-week cure window — is the single best protection. Avoid alkaline wheel cleaner overspray, which can yellow lacquer, and never use ammonia-based glass cleaners on the part. Bird-strike acid should be flushed within hours; etching shows on lacquered weave faster than on painted body panels because the carbon is darker. For raw matte finishes use a pH-neutral panel wipe rather than wax. Stone chips at the leading edge are the realistic failure mode; a chip-touch kit colour-matched to the lacquer ships with each spoiler. Expected lacquer life is 8–10 years before any noticeable haze; the laminate itself is effectively service-free. Trunk-mounted carbon also sees a stress most body panels do not — small torsional flex when the trunk opens and closes daily. Mansory's expansion-gap design accommodates this, but owners should let the soft-close mechanism work rather than slamming the lid; hard closures over years can stress the bond line at the outermost tape footprint.

Lead Time & Warranty

Standard 3K twill lacquered finish ships from Mansory's bespoke line in 4–6 weeks. Specials — silver-thread weave, two-tone body-colour leading edge, raw matte with custom sealing — extend lead time to 6–8 weeks. Every spoiler ships with a 12-month manufacturing warranty covering laminate delamination, void formation, fitment-radius defects against the OEM CAD, and lacquer cure faults. Stone-chip damage, PPF-removal damage, and damage from aftermarket trunk accessories are outside warranty.

FAQ

Q: Is this the same part as the Mansory Spectre roof spoiler?
A: No. The roof spoiler caps the rear edge of the roofline above the rear glass. This is the trunk-lid spoiler — a ducktail lip on the rear deck, behind the rear glass. Many Spectre Mansory builds run both; the two parts bracket the rear screen and complete the rear silhouette together.

Q: Will it affect the Spectre's regen-brake or driver-assistance sensors?
A: No. The Spectre's rear-facing radar and camera modules are mounted in the rear bumper and trunk badge area; the spoiler sits forward and above their fields of view. Regen behaviour is unaffected since the spoiler is a passive aero device with no electrical interface.

Q: Can I have it painted body colour instead of left in carbon?
A: Yes. The most popular configurations are full body-colour, full lacquered carbon, gloss black, or a two-tone with the leading 60 mm in body colour and the upper face in raw or lacquered weave. We colour-match to the original OE paint code on file.

Q: How is it mounted — bolts, clips, or tape?
A: 3M VHB modified-acrylic foam tape, 5 mm, with two centring locator tabs that index off the OE trunk-lid shut-line. No drilling, no bolts, no clips into the trunk skin. The tape is the same chemistry Mansory specifies for its Spectre side skirts and rear diffuser, and it is the appropriate adhesive system for the aluminium Architecture of Luxury spaceframe.

Q: Will it fit a RHD car identically?
A: Yes. The Spectre's trunk-lid geometry is symmetrical and shared between LHD and RHD specifications, so the spoiler is a single SKU regardless of steering side.

Q: Does it add drag?
A: The aerodynamic intent is balance, not peak downforce. At highway cruise speeds the drag impact is essentially within the noise floor of OE manufacturing tolerances; the spoiler's contribution is rear-axle stability at higher speeds rather than drag-trading downforce. Range impact at typical motorway cruise is not measurable in real-world driving.

Pair this spoiler with the carbon rear diffuser and silver-logo trunk emblem to complete the Spectre's rear graphic in a single specification. To order, ask for two-tone configuration options, or arrange a Mansory-trained installer, contact WhatsApp +44 7488 818 747 or [email protected].
